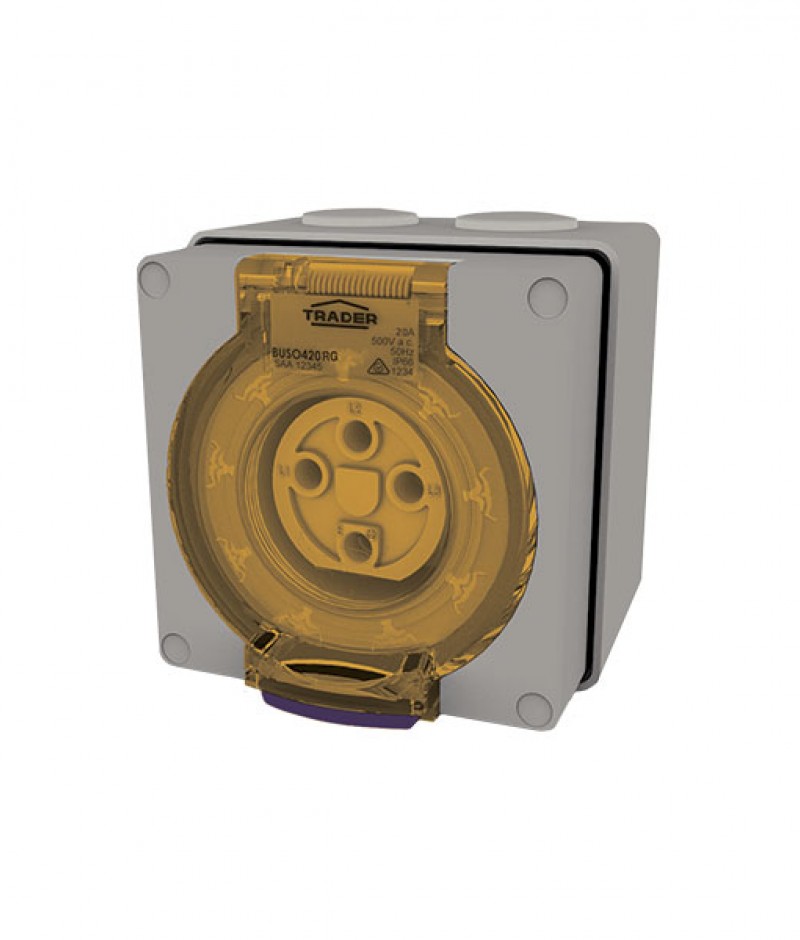

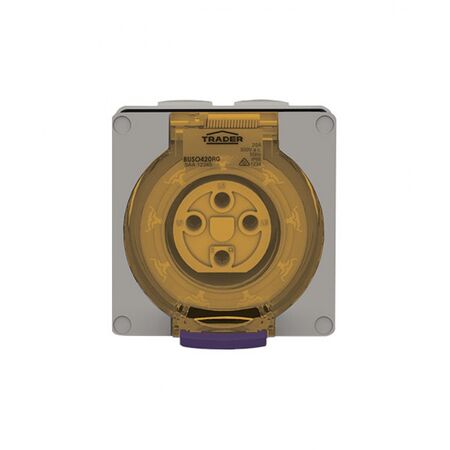

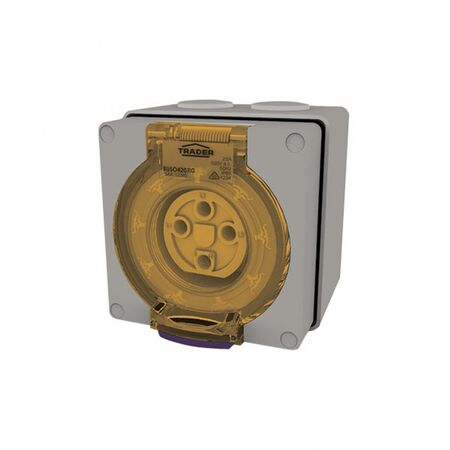

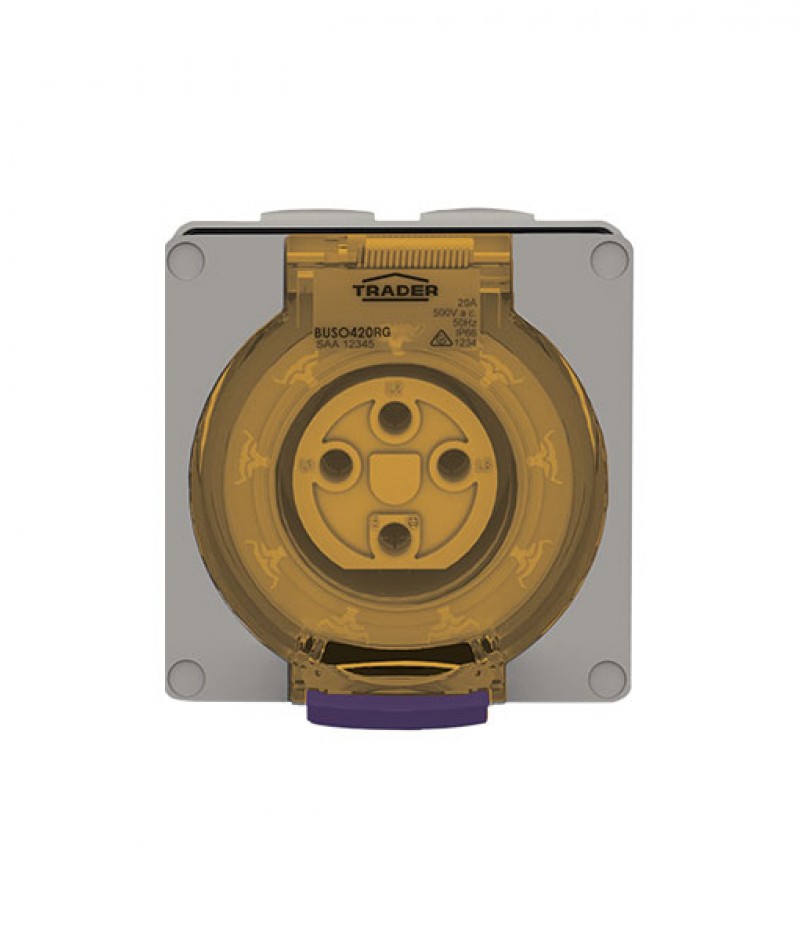

Socket Outlet IP66 20A 500V 4 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 20A 500V capacity and 4 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: BUSO420, Buffalo IP66 Industrial Socket, Heavy‑Duty 4‑Pin Socket Outlet
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 500 V AC
- Pin Configuration: 4‑Round Pin
- Enclosure Type: Chemical‑resistant, IP66
- Conductor Size Range: 2.5 mm² to 6 mm²
- Cover Design: Spring‑loaded transparent flap, opens 180°

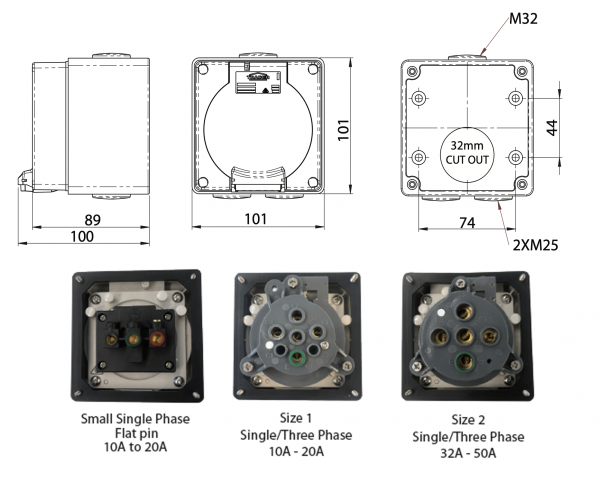

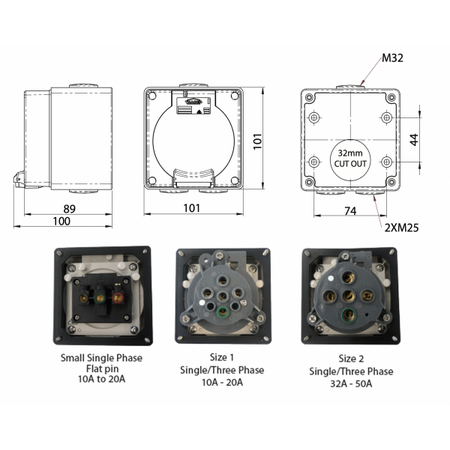

- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.7 kg
Key Features
- IP66 weatherproof rating – sealed against dust and powerful water jets
- Chemical‑resistant enclosure suited for harsh industrial and wash‑down areas
- Spring‑loaded transparent flap for easy access and protection when not in use
- Threaded surround accepts plug lock rings to maintain IP66 integrity
Professional Installation Requirements
- Installation should be performed by a qualified electrician in accordance with AS/NZS 3000.
Applications
- Industrial factories and warehouses
- Wash‑down and harsh environment installations
- Construction sites and outdoor temporary power
- Heavy duty outdoor power connections
Standards & Compliance
- AS/NZS 3123 plug & socket‑outlet standards (industrial)
- AS/NZS 3000 wiring rules (installation)
Environmental Benefits
- Durable chemical‑resistant design extends product life, reducing waste
Warranty Information
10 year warranty as per Trader Buffalo product series.
Available Now
Available through authorised Australian electrical distributors.
