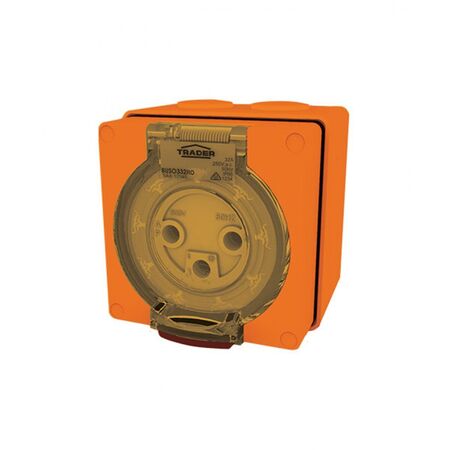

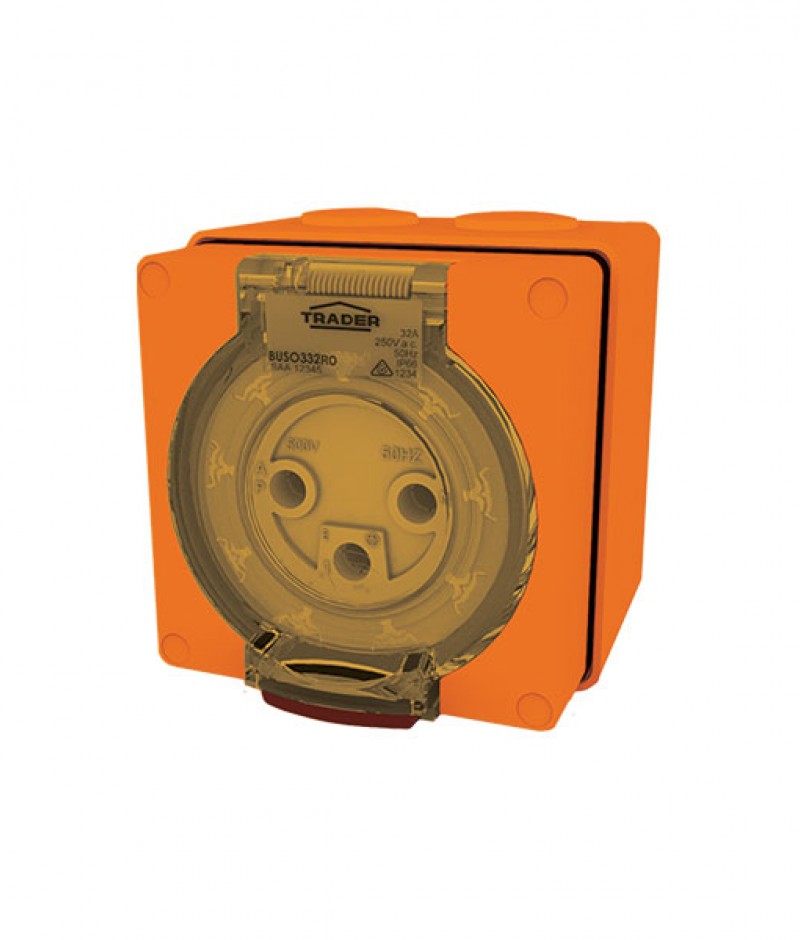

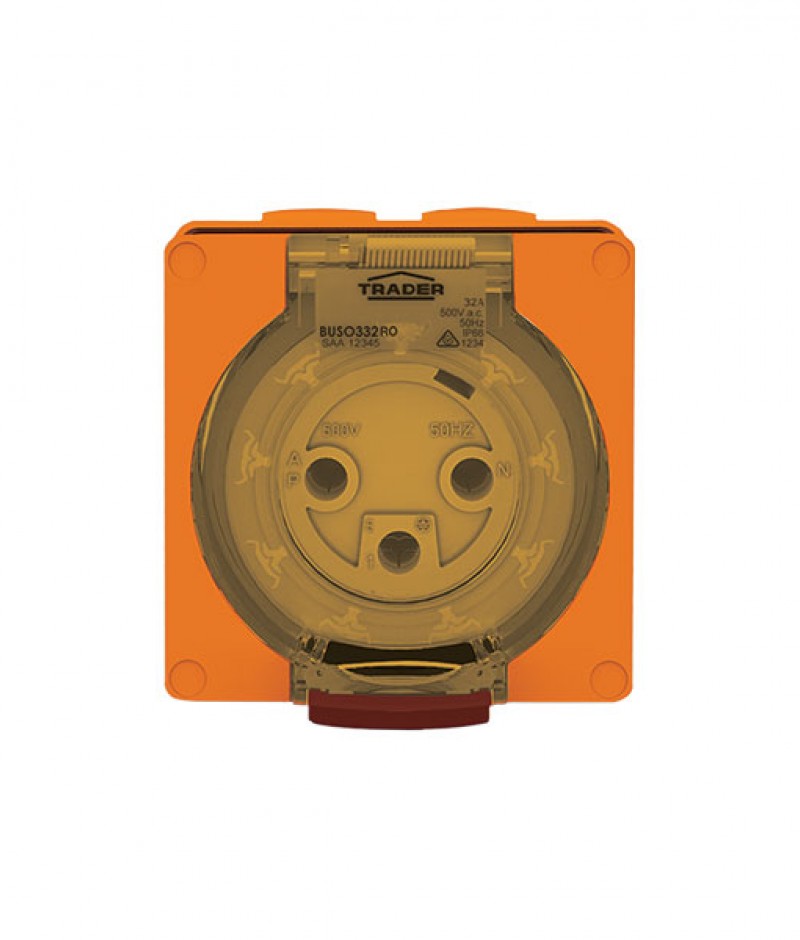

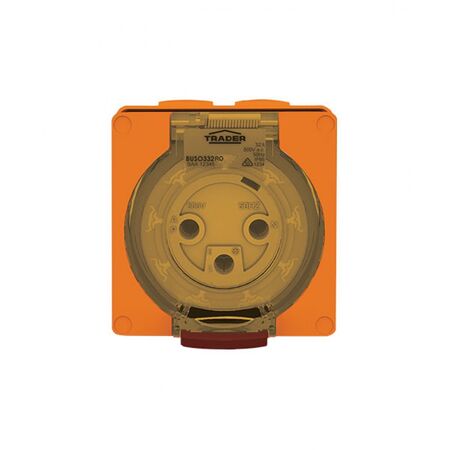

Socket Outlet IP66 32A 250V 3 Round Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 32A 250V capacity and 3 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo RO Socket Outlet, Chemical Resistant Socket, Heavy‑Duty IP66 Socket

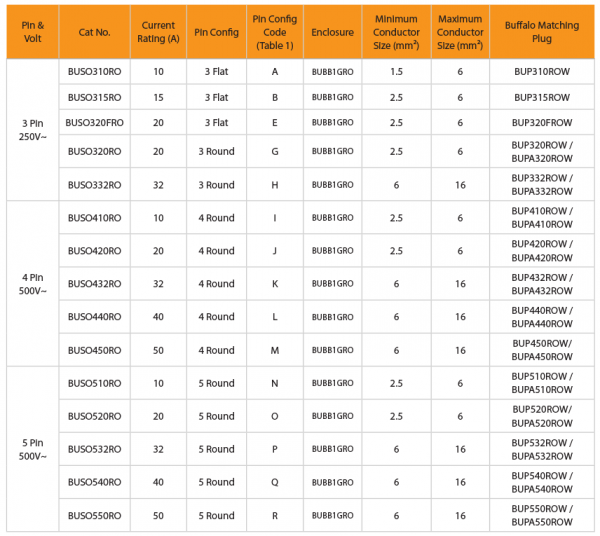

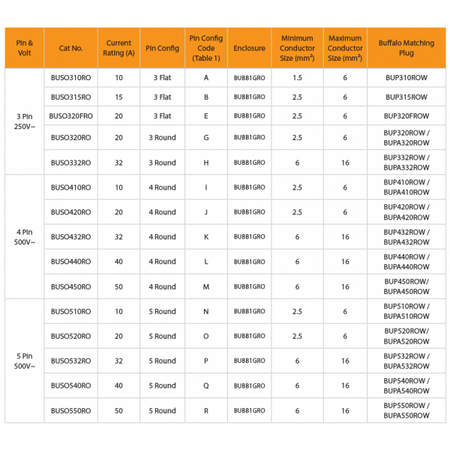

Technical Specifications
- Current Rating: 32 A
- Voltage: 250 V AC
- Pin Configuration: 3‑Round Pin
- Ingress Protection: IP66
- Flap: Spring‑loaded transparent flap opens 180°
- Gland Thread Size: compatible with Size 2 range cable glands, accept ø11‑25 mm cable

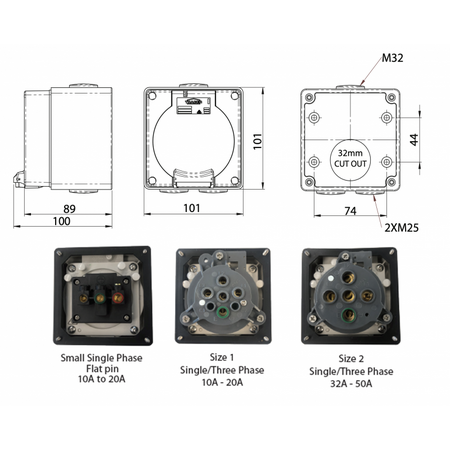

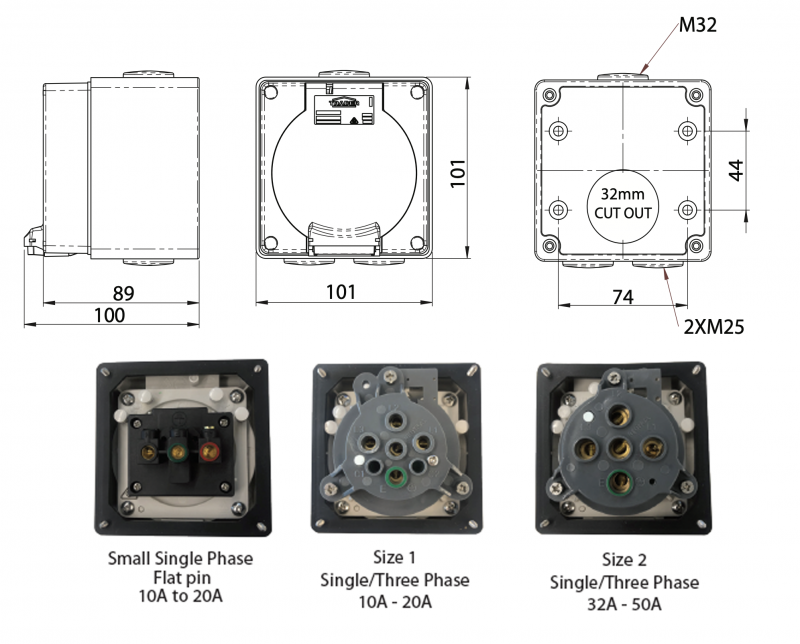

- Dimensions (H x L x W): 101mm x 101mm x 100mm
- Weight: 0.5 kg
Key Features
- Chemical‑resistant orange housing for acidic or wash‑down environments
- Spring‑loaded transparent flap seals dust and moisture when not in use
- Flap opens to 180° for easy plug insertion/removal
- Threaded surround accepts lock‑ring to maintain IP66 rating under heavy use
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with AS/NZS wiring regulations.
Applications
- Industrial wash‑down areas (chemical plants, food processing)
- Outdoor or harsh environment power outlets
- Temporary power distribution in corrosive or high‑moisture locations
Standards & Compliance
- Likely meets AS/NZS 3123 for appliance couplers
Environmental Benefits
- Durable chemical‑resistant construction reduces replacement frequency, minimising waste
Warranty Information
10‑year warranty (general Trader Buffalo range) as per Buffalo warranty terms.
Available Now
Available through authorised Australian electrical wholesalers and distributors.
