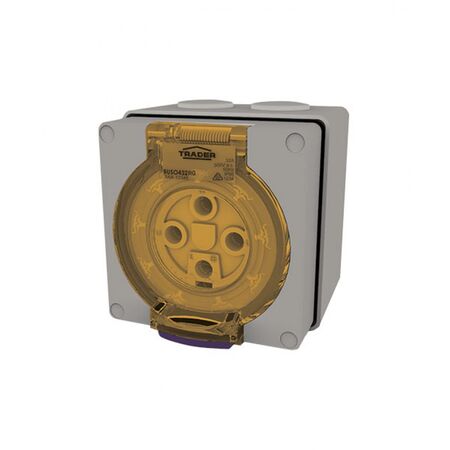

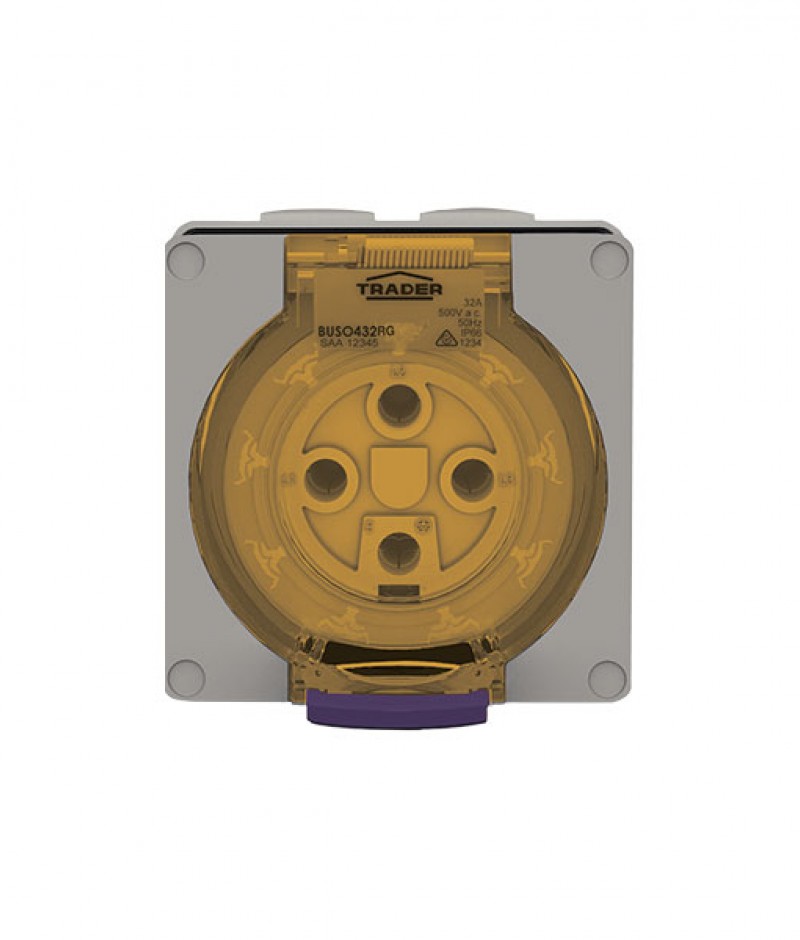

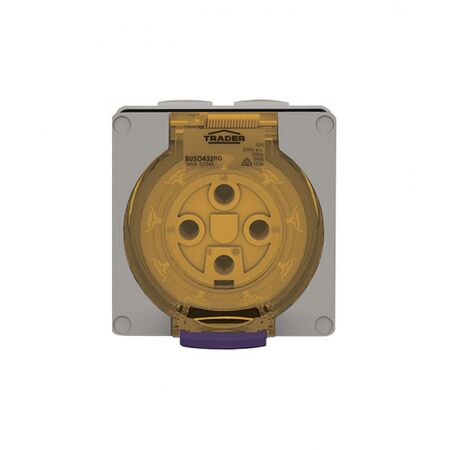

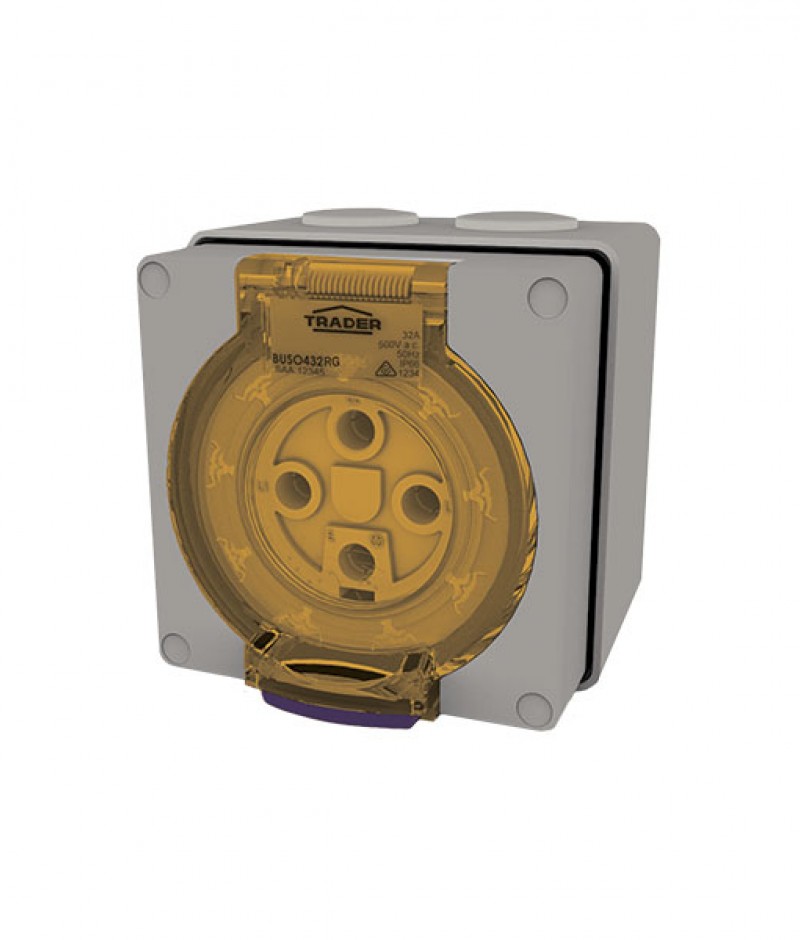

Socket Outlet IP66 32A 500V 4 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 32A 500V capacity and 4 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo Chemical‑Resistant Socket Outlet IP66 32 A 500 V – 4‑Pin
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 500 V AC
- Pin Configuration: 4‑round pins (Pin Code K)
- Cable Diameter: 11‑25 mm²
- Recommended Conductor Size: 16 mm²
- Ingress Protection: IP66
- Ambient Operating Temperature: –25 °C to 75 °C

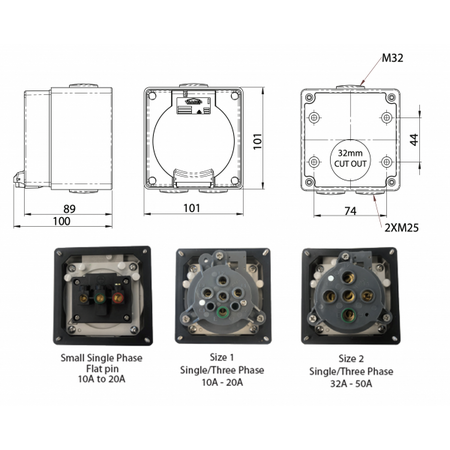

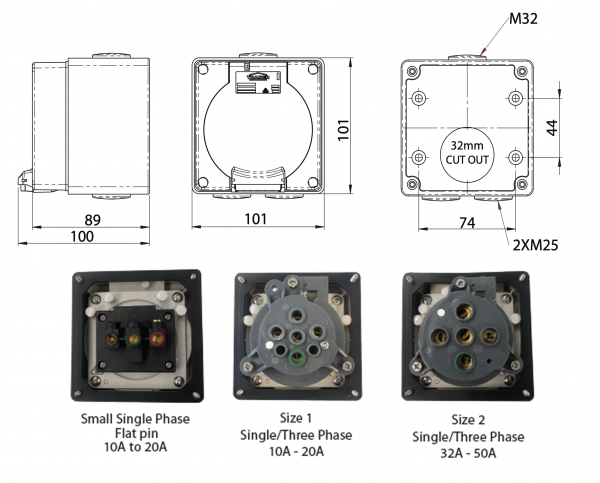

- Dimensions (H x L x W): 107mm x 101mm x 102mm
- Weight: 0.58 kg
Key Features
- Chemical‑resistant polycarbonate front with spring‑loaded transparent flap for dust and moisture protection
- Threaded surround compatible with plug lock‑rings to maintain IP66 rating
- Heavy‑duty design suitable for industrial and wash‑down environments
- Pin‑code K ensures compatibility and safety per AS/NZS 3123
Professional Installation Requirements
- Should be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial wash‑down areas
- Chemical processing environments
- Heavy‑duty outdoor or indoor industrial power connections
- Temporary power setups requiring IP66 weatherproofing
Standards & Compliance
- AS/NZS 3123 (industrial plugs and socket‑outlets)
- AS/NZS 3112 (plug configuration compatibility)
- AS 60529 (IP rating definitions used for IP66)
Environmental Benefits
- Polycarbonate and PVC components are recyclable
- Extended lifespan in harsh environments reduces replacement frequency and waste
Warranty Information
Trader provides a 10‑year warranty on switches and sockets from the Buffalo range via GSM Electrical (Australia) Pty Ltd.
Available Now
Available through Trader authorised Australian distributors.
