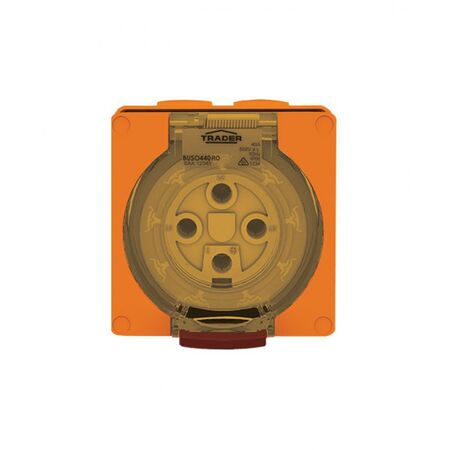

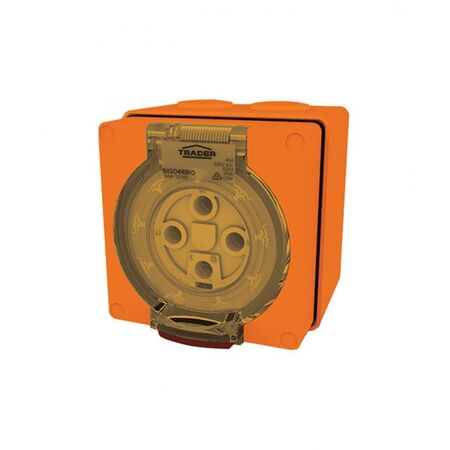

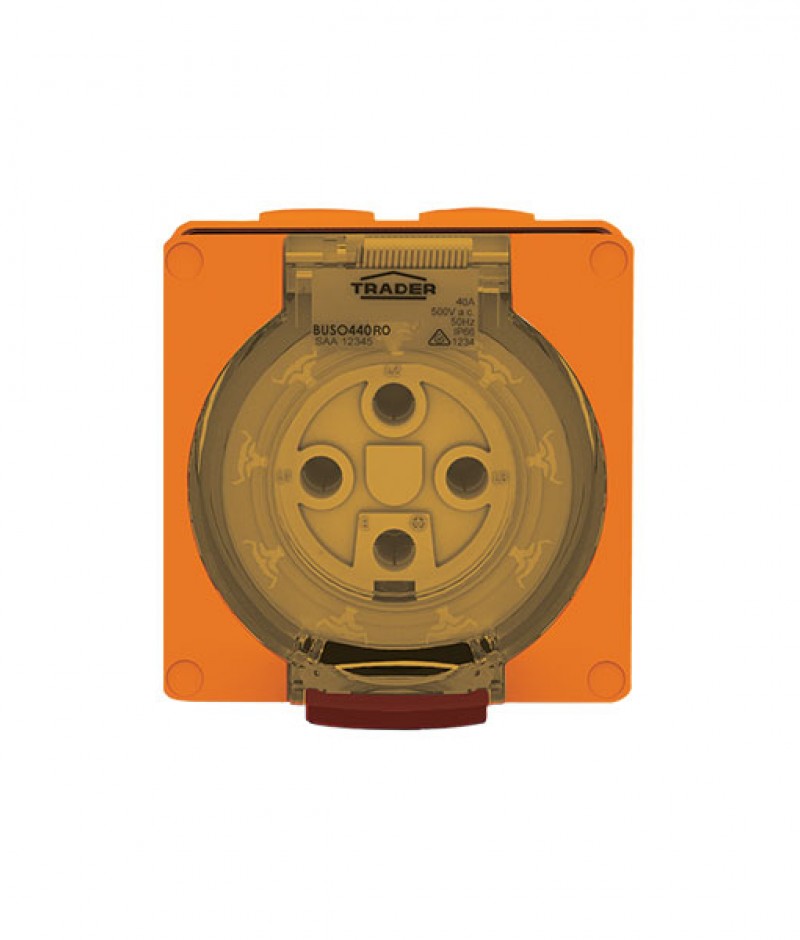

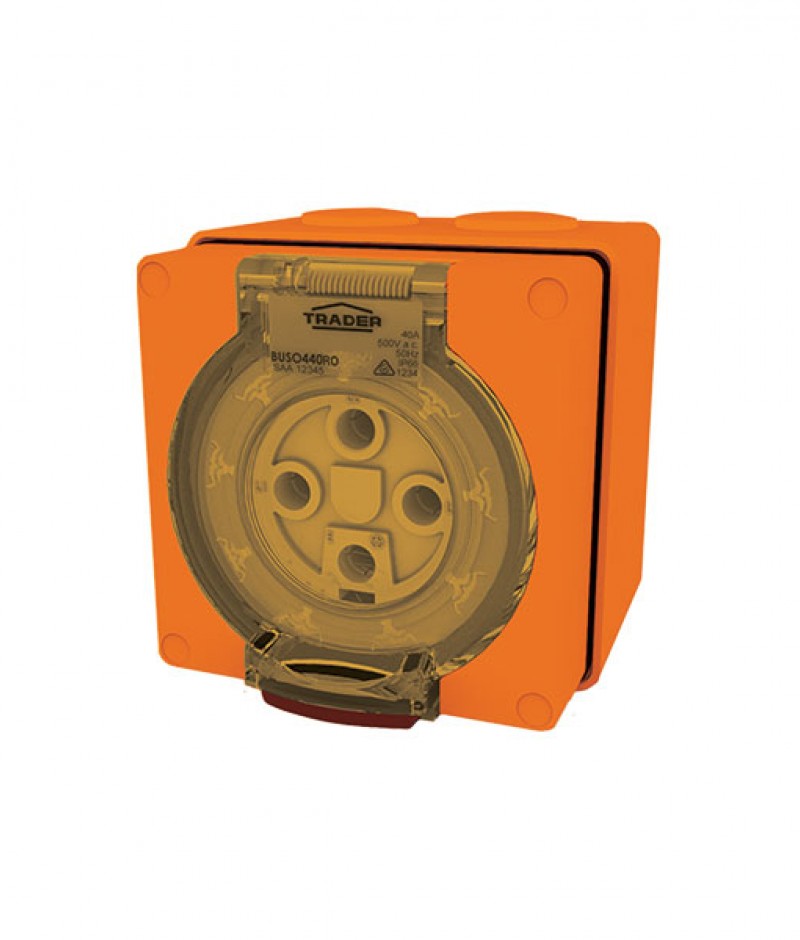

Socket Outlet IP66 40A 500V 4 Round Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 40A 500V capacity and 4 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo BUSO440 Socket Outlet, Heavy‑Duty Chemical‑Resistant Socket, IP66 Industrial Socket

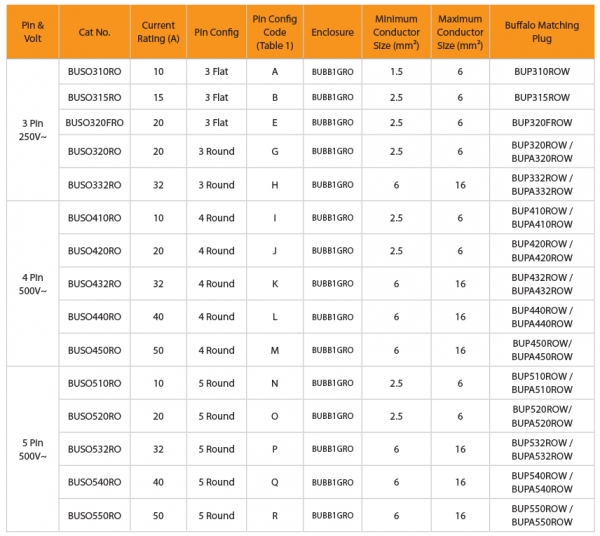

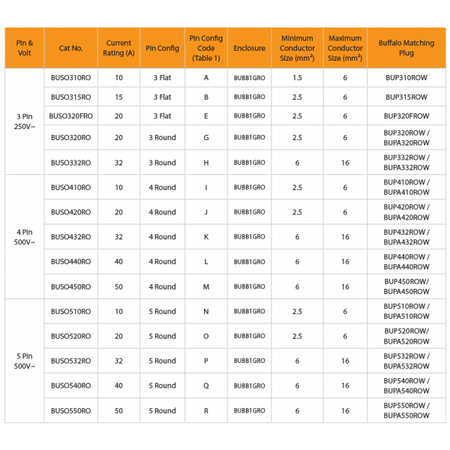

Technical Specifications
- Current Rating: 40 A
- Voltage Rating: 500 V AC
- Pin Configuration: 4 round pins
- Ingress Protection: IP66
- Material: Chemical‑resistant polycarbonate housing
- Minimum Conductor Size: 6 mm²
- Maximum Conductor Size: 16 mm²

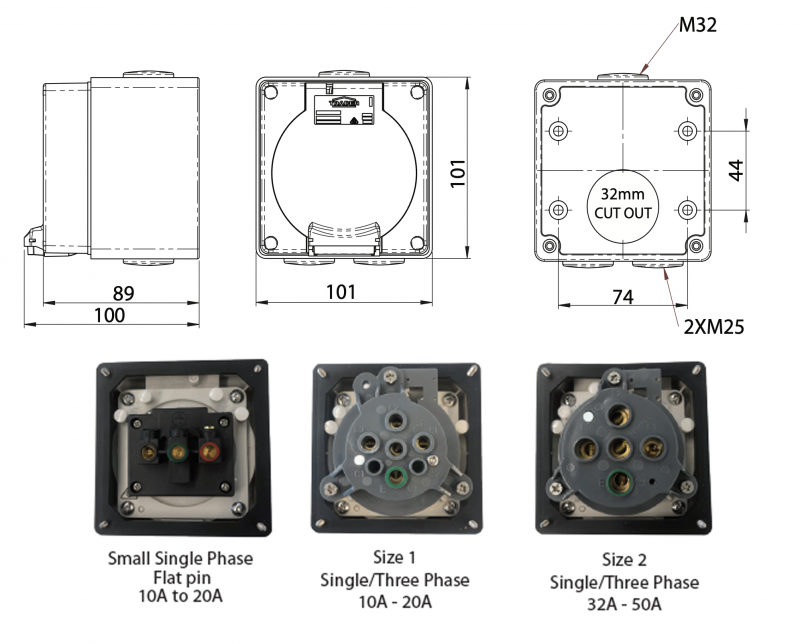

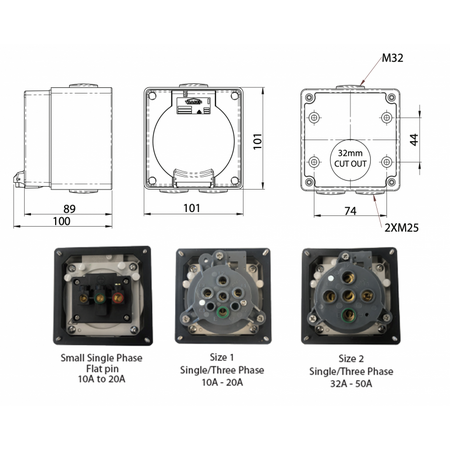

- Dimensions (H x L x W): 150mm x 90mm x 120mm
- Weight: 1.5 kg
Key Features
- IP66 weatherproof rating prevents dust and high‑pressure water ingress
- Chemical‑resistant construction suited to wash‑down and industrial areas
- Heavy‑duty 40 A capacity for robust electrical connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards.
Applications
- Industrial wash‑down areas
- Chemical plants and corrosive environments
- Heavy‑duty outdoor power connections
Standards & Compliance
- Complies with AS/NZS 3123 for industrial plugs and socket‑outlets
- Meets IEC 60309 relevant to IP66 industrial connectors
Environmental Benefits
- Durable, chemical‑resistant construction reduces frequency of replacements and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available through authorised Australian electrical wholesalers; trade availability varies by distributor.
