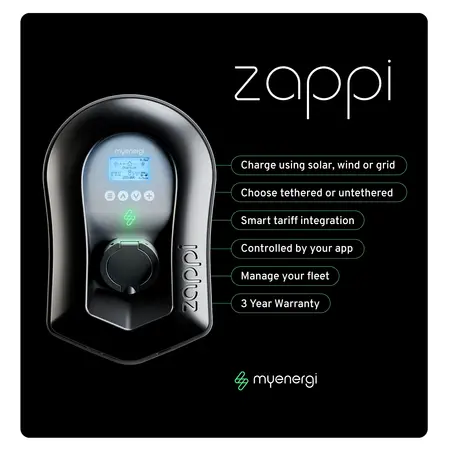

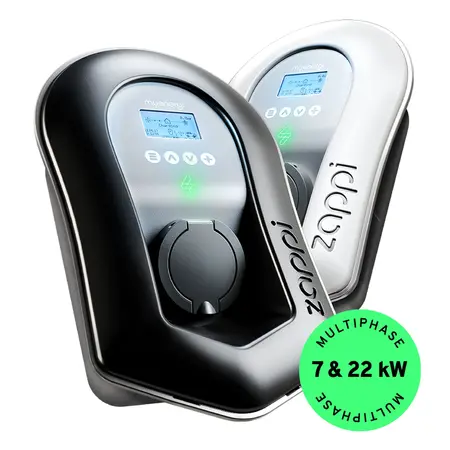

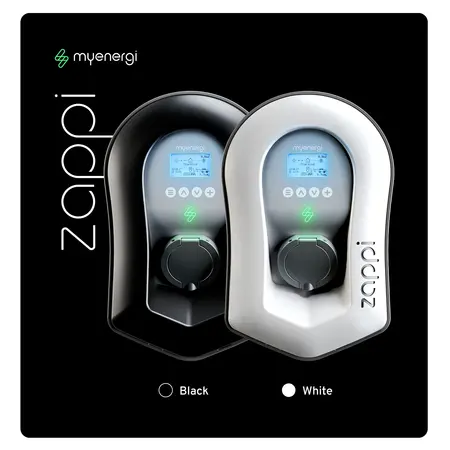

Solar EV Charger V2.1 Zappi Multiphase 7kW 22kW IP65 My Energi
Supports selectable 7kW single-phase or 22kW three-phase charging for residential and commercial electric vehicle applications. Features an IP65 weatherproof ASA enclosure, 6.5m tethered cable, OCPP connectivity and integrated 30mA Type A RCD with 6mA DC protection. Complies with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 while enabling reliable solar-powered EV charging performance. Continue below for the complete specifications, installation requirements and charging features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Power: 7kW (single-phase) or 22kW (three-phase)
- Rated Supply Voltage: 230V AC single-phase or 400V AC three-phase (+/- 10%)
- Supply Frequency: 50 Hz
- Rated Current: 32A max
- Standby Power Consumption: 3W
- Integral Earth Leakage Protection: 30mA Type A RCD + 6mA DC protection (EN 62955)
- Economy Tariff Sense: Input 230V AC sensing (4.0kV isolated)

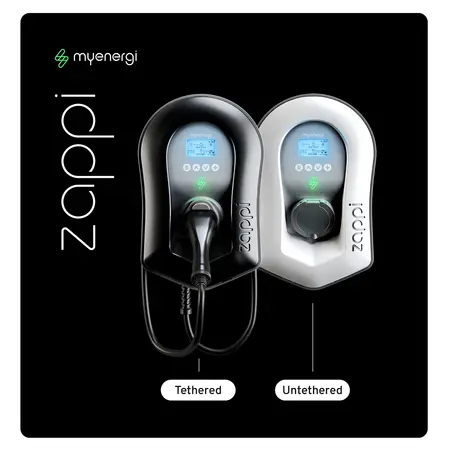

- Tethered Cable Length: 6.5 meters
- Enclosure Material: ASA
- Protection Degree: IP65 (weatherproof)

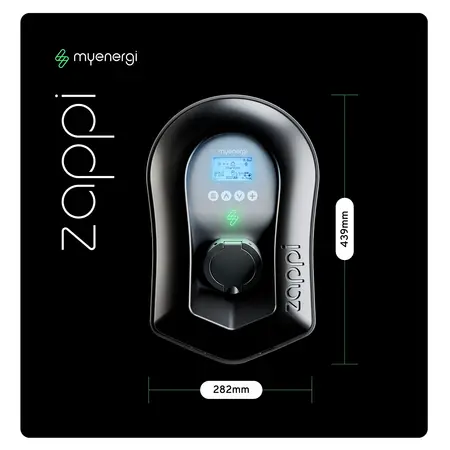

- Dimensions (H x L x W): 439mm x 122mm x 282mm
- Weight: 7 kg
Key Features
- World’s first solar EV charger
- Selectable power settings: 7kW single-phase or 22kW three-phase
- Compatible with OCPP for enhanced control and connectivity
- Integral earth leakage protection with 30mA Type A RCD and 6mA DC protection
- Weatherproof IP65 rated ASA enclosure
- 6.5 meter tethered cable
- Supports 100% green energy charging

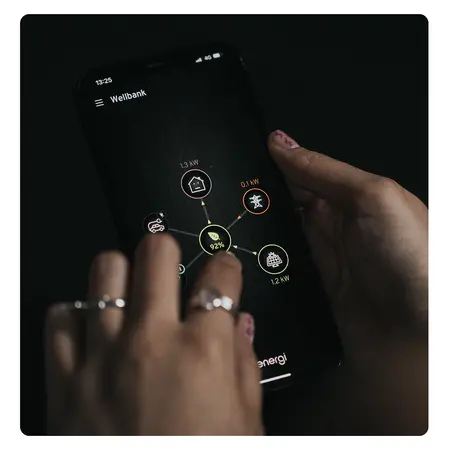

- User-friendly design with myenergi app for remote monitoring and control
Professional Installation Requirements
- Professional installation by a qualified electrician is required, ensuring compliance with local electrical standards and safety regulations.
Applications
- Residential EV charging
- Commercial EV charging
- Eco-friendly and solar-powered vehicle charging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables 100% green energy charging using solar or wind power
- Reduces carbon footprint by maximizing renewable energy use
- Supports off-peak charging to optimize energy consumption
Warranty Information
3 year warranty with registration and access to technical support.
Available Now
The My Energi V2.1 zappi Multiphase EV Charger is available for immediate purchase, ideal for residential and commercial eco-friendly vehicle charging solutions.
FAQ
Q: What charging power options does this Zappi Multiphase charger support?
A: It offers selectable charging outputs of 7kW for single-phase installations or 22kW for three-phase installations.
Q: Is this charger suitable for solar-powered EV charging?
A: Yes. It is designed for residential and commercial eco-friendly EV charging and supports 100% green energy charging with an IP65 weatherproof enclosure.
Pair this charger with an EV charging cable Type 2 to Type 2 10m 3P for installations requiring additional charging cable reach.
Add an EV charging cable holder to keep charging equipment organised and protected between charging sessions.
Install with an EV charging station pedestal floor standing aluminum when a freestanding charging point is preferred.
Read the commercial EV charger selection guide to compare charging solutions for residential and commercial projects.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
