Solar EV Charger V2.1 Zappi Multiphase 7kW 22kW IP65 My Energi
Supports selectable 7kW single-phase or 22kW three-phase charging for residential and commercial electric vehicle installations. Features an IP65 weatherproof ASA enclosure, OCPP compatibility, 6.5m un-tethered cable configuration and integrated 30mA Type A RCD with 6mA DC protection. Complies with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 for reliable solar-compatible EV charging performance. See the detailed specifications below for installation requirements, operating features and technical data.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Power: 7kW single-phase or 22kW three-phase
- Rated Supply Voltage: 230V AC single-phase or 400V AC three-phase (+/- 10%)
- Supply Frequency: 50 Hz
- Rated Current: 32A max
- Standby Power Consumption: 3W
- Integral Earth Leakage Protection: 30mA Type A RCD + 6mA DC protection (EN 62955)
- Economy Tariff Sense: Input 230V AC sensing (4.0kV isolated)

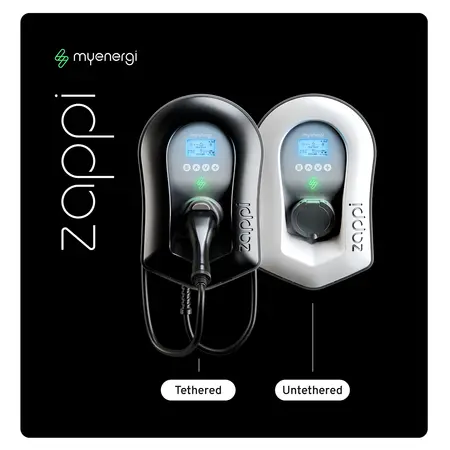

- Un-tethered Cable Length: 6.5 meters
- Enclosure Material: ASA
- Protection Degree: IP65 weatherproof

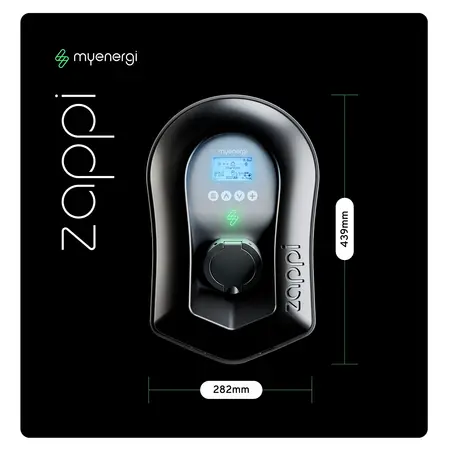

- Dimensions (H x L x W): 439mm x 122mm x 282mm
- Weight: 7 kg
Key Features
- Selectable power settings of 7kW (single-phase) and 22kW (three-phase)
- First solar EV charger enabling 100% green energy charging
- OCPP compatibility for enhanced control, tracking, and connectivity
- Integral 30mA Type A RCD + 6mA DC protection for safety
- Weatherproof IP65 rated ASA enclosure
- 6.5 meter un-tethered cable for convenient charging
- Compatible with single-phase 230V AC and three-phase 400V AC supply
- Standby power consumption of only 3W
- Supports economy tariff sensing for cost-effective charging

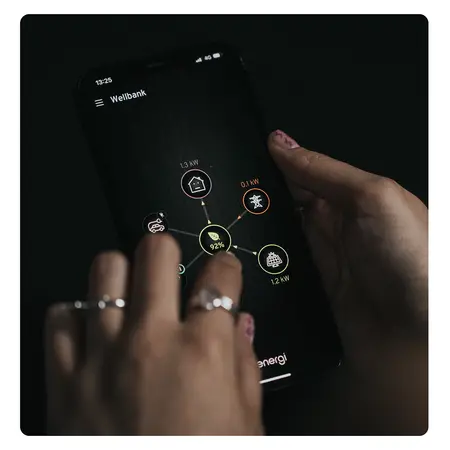

- User-friendly with myenergi app for remote monitoring and control
Professional Installation Requirements
- Professional installation by a qualified electrician is required, including a 40A Type B circuit breaker and compliance with local electrical standards.
Applications
- Residential EV charging
- Commercial EV charging
- Eco-friendly and solar-powered vehicle charging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables 100% green energy charging using solar or wind power
- Reduces reliance on grid electricity and fossil fuels
- Supports sustainable transportation and lowers carbon footprint
- Energy-efficient design with low standby power consumption
Warranty Information
3 year warranty with registration and access to technical support.
Available Now
The My Energi V2.1 zappi Multiphase EV Charger is available for immediate purchase, ideal for residential and commercial eco-friendly vehicle charging.
FAQ
Q: What charging power options are available with this Zappi charger?
A: The charger supports selectable 7kW single-phase or 22kW three-phase charging for different installation requirements.
Q: Is this charger suitable for outdoor solar EV charging?
A: Yes. It features an IP65 weatherproof enclosure and is designed for residential and commercial eco-friendly EV charging applications when installed by a qualified electrician.
Pair this charger with an EV charging cable Type 2 to Type 2 10m 3P where additional charging cable length is required.
Add an EV charging cable holder to keep charging accessories organised between charging sessions.
Install on an EV charging station pedestal floor standing aluminum when wall mounting is not the preferred installation method.
Review the commercial EV charger selection guide to compare charging options for residential and commercial projects.
