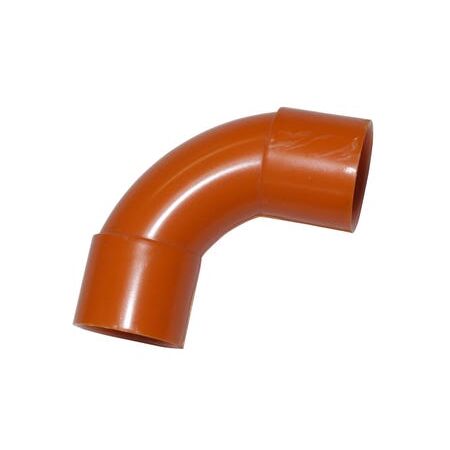

Solid Elbow Fitting PVC 20mm Heavy-Duty 90 Degree Orange Cabac
Designed for tight 90° conduit bends, this solid elbow fitting provides reliable conduit routing for electrical installations and cable management systems. Heavy-duty orange PVC construction delivers durability for residential, commercial, and industrial environments with UV exposure. The UV stabilised design supports outdoor use and secure joining with PVC cement for compliant conduit installations. Dimensions, joining requirements, and installation specifications are detailed further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Heavy-duty orange PVC
- Size: 20mm diameter
- Design: Solid elbow for 90° bends
- Joining method: Use PVC cement for secure joining
- UV stabilised for outdoor use
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Moulded PVC conduit elbow designed for tight 90° bends
- Made from heavy-duty orange PVC
- UV stabilised for resistance to UV degradation
- BEP certified for environmental compliance
Professional Installation Requirements
- Installation by a qualified electrician or trained professional recommended to ensure secure and compliant conduit connections.
Applications
- Electrical conduit installations requiring tight 90° bends
- Cable and wire management in residential, commercial, and industrial settings
- Outdoor and indoor conduit routing with UV exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- BEP certified ensuring environmentally responsible manufacturing
- UV stabilisation extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Solid Elbow Fitting PVC 20mm Orange is available now for immediate purchase. Ideal for electrical conduit installations requiring durable and UV resistant fittings.
FAQ
Q: Is this elbow fitting suitable for outdoor installations?
A: Yes, the fitting is manufactured from UV stabilised heavy-duty orange PVC for outdoor conduit applications.
Q: What type of conduit bend does this fitting provide?
A: The fitting provides a solid 90 degree bend designed for tight conduit direction changes and routing requirements.
A conduit coupling 20mm PVC fitting can be used to create secure joins between conduit sections and fittings.
Install with a solid tee 20mm conduit fitting where conduit runs require additional branch connections within the system.
A shallow junction box 4 way 20mm conduit option can provide accessible conduit junction points for cable routing layouts.
Electricians specifying rigid conduit systems may benefit from the conduit fittings Australia guide when selecting compatible installation components.
