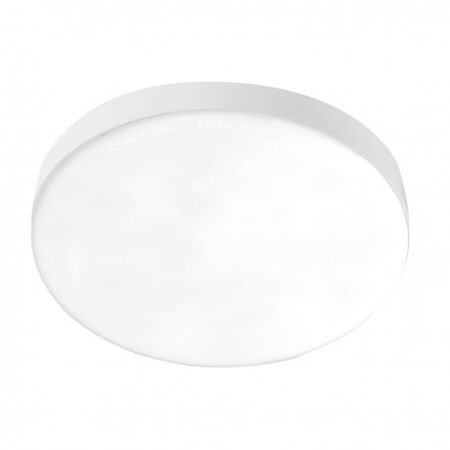

Sovereign DC Ceiling Fan Light Kit 24W LED White Ventair
Sovereign DC Light Kit 24W LED Light Tri-Colour (Warm White Natural White Cool White) Dimmable White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Sovereign DC Light Kit, Sovereign CCT LED Light Kit, Ventair Sovereign Fan Light
Technical Specifications
- Light Type: Integrated LED panel
- Power: 24W
- Light Output: 2193 lumens average
- Colour Temperature: 3000K warm white, 4000K natural white, 6000K cool white
- Colour Selection: Tri-colour CCT switch
- Dimming: Yes, via compatible Sovereign DC fan control
- Finish: White
- Compatibility: Ventair Sovereign DC six-blade ceiling fans
- Dimensions (H x L x W): 70mm x 220mm x 220mm
- Weight: 0.55 kg
Key Features
- Slimline integrated 24W LED panel
- Selectable warm, natural and cool white colour temperatures
- Dimmable light output
- Designed specifically for Ventair Sovereign DC ceiling fans
- White finish to match compatible fan assemblies
- Compact replacement or retrofit light kit
Professional Installation Requirements
- Installation and electrical connection must be performed by a qualified and licensed electrician. Isolate the fan and light-kit wiring before installation, servicing or removal, and use only with a compatible Ventair Sovereign DC ceiling fan and approved control system.
Applications
- Residential living rooms, bedrooms and dining areas
- Commercial and office interiors
- Indoor and covered outdoor areas within the limits of the compatible ceiling fan
- Replacement or retrofit lighting for compatible Ventair Sovereign DC ceiling fans
Standards & Compliance
- AS/NZS 60598.1 requirements applicable to fixed LED luminaires
- AS/NZS 60598.2.1 requirements applicable to fixed general-purpose luminaires
- Installation in accordance with AS/NZS 3000 Wiring Rules
Environmental Benefits
- LED technology provides efficient illumination compared with traditional incandescent or halogen lamps
- Dimmable operation can reduce electricity consumption when full brightness is not required
- Integrated LED construction reduces routine globe replacement and associated waste
- Selectable colour temperature avoids replacing the fitting to achieve different lighting effects
- Long-life solid-state lighting can reduce replacement frequency and product waste
Warranty Information
Two-year limited warranty against manufacturing defects for the light kit, subject to Ventair warranty conditions. Commercial installations are generally subject to a one-year warranty period. Installation must be completed by a qualified electrician.
Available Now
Available through authorised Ventair distributors in Australia.
