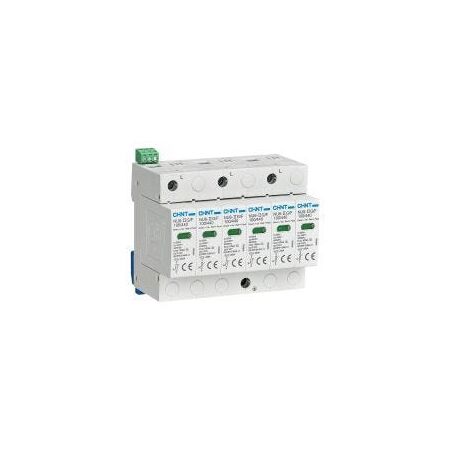

SPD Type 2 100kA 440V 3P Remote Contact NU6 Chint
Chint NU6 Type 2 surge protection device features 100kA Imax, 440V Uc, 3 pole and remote signalling contact. Ideal for main switchboard surge protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT NU6-II/F 100kA SPD, Type 2 Surge Arrester, Three-Phase Surge Protector, DIN Rail Surge Protection Device
Technical Specifications
- SPD Type: Type 2
- Maximum Discharge Current Imax: 100kA, 8/20µs waveform
- Nominal Discharge Current In: 50kA, 8/20µs waveform
- Maximum Continuous Operating Voltage Uc: 440V AC
- System Voltage: 230/400V AC
- Frequency: 50Hz/60Hz
- Configuration: 3P
- Voltage Protection Level Up: Model-dependent, up to 2.4kV for the 440V variant
- Remote Signalling Contact: 1NO + 1NC auxiliary contact
- Remote Contact Rating: Up to 250V AC, 0.5A
- Remote Signal Wiring: Up to 1.5mm²
- Connection Capacity: Up to 16mm²
- Mounting: TH35-7.5 DIN rail
- Construction: Plug-in modular protection cartridges with visual fault indication
- Compatible Earthing Systems: TN-S, TN-C, TT and IT
- Dimensions (H x L x W): 101.5mm x 108mm x 50mm
- Weight: 0.6 kg
Key Features
- 100kA maximum discharge capacity for high-exposure surge environments
- Type 2 protection for transient overvoltage in low-voltage distribution systems
- 440V maximum continuous operating voltage for three-phase applications
- Three-pole configuration for main switchboard installation
- Remote signalling contact for connection to building management or alarm systems
- Replaceable plug-in protection modules allow servicing without replacing the complete base
- Visual status indicator identifies damaged protection modules
- Thermal overload and ageing protection
- DIN rail mounting for switchboards and distribution boards
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Correct upstream overcurrent protection, earthing, conductor sizing and coordination with other SPDs must be verified before commissioning.
Applications
- Main switchboards
- Three-phase commercial electrical distribution boards
- Industrial control and power distribution panels
- Building management systems requiring remote SPD status monitoring
- Protection of low-voltage electrical equipment from lightning-induced and switching transients
Standards & Compliance
- AS/NZS 3000 for electrical installation, wiring and earthing requirements
Environmental Benefits
- Replaceable protection modules extend the service life of the DIN rail assembly and reduce replacement waste
- Modular construction supports targeted replacement of damaged cartridges rather than the complete device
- RoHS-related restricted-substance compliance supports reduced use of hazardous materials
- Protection against transient surges can help reduce premature failure and electronic equipment waste
Warranty Information
CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture when purchased through authorised sales channels, subject to applicable contract terms.
Available Now
Available through authorised CHINT distributors in Australia.
