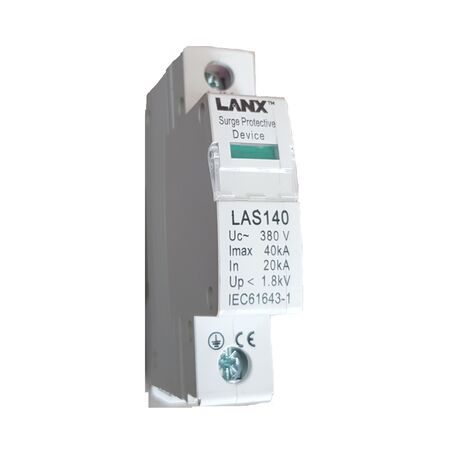

Surge Protection Device 230V 40kA DIN Rail Grey Lanx
The Surge Protection Device 230V 40kA DIN Rail Grey LANX is designed for surge protection in industrial control panels, switchboards, and residential main electrical switchboards. It features a 230V AC rated voltage, 40kA maximum discharge current, and LED status indication. The device complies with AS/NZS 1768 for Lightning Protection and requires installation by a licensed electrician. See the technical specifications below for ratings, applications, and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Configuration: 1 Pole
- Nominal Voltage (Un): 230V AC
- Maximum Continuous Operating Voltage (Uc): 255V AC
- Nominal Discharge Current (In): 40kA
- Maximum Discharge Current (Imax): 40kA
- Protection Level (Up): ≤ 1.5kV
- Enclosure: DIN Rail Mount
- Dimensions (H x L x W): 90mm x 58mm x 36mm
- Weight: 0.2 kg
Key Features
- Protects against transient overvoltages
- High discharge current rating (40kA)
- Low protection voltage level (≤ 1.5kV)
- DIN rail mountable enclosure
- Status indication LED
- Thermal disconnection feature
Professional Installation Requirements
- Licensed electrician installation required. Must be installed on dedicated circuit with proper earthing/grounding. Follow all local electrical regulations.
Applications
- Industrial: Control panels, switchboards
- Commercial: Electrical distribution boards
- Residential: Main electrical switchboards
- General: Any 230V AC application requiring surge protection
Standards & Compliance
- Complies with AS/NZS 1768 for Lightning Protection
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste.
- Enhances longevity of electrical systems, minimizing resource consumption.
Warranty Information
5 year standard manufacturer warranty. Valid only with proper licensed installation. Void if installed by non-licensed personnel. Installation certificate must be retained. Covers manufacturing defects and material faults.
Available Now
The LANX Din Rail Surge Protector 40kA is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical surge protection applications.
FAQ
Q: What is the maximum discharge current of the Surge Protection Device?
A: The maximum discharge current is 40kA.
Q: Where can the Surge Protection Device be used?
A: It is suited to industrial control panels, switchboards, residential main electrical switchboards, and general electrical equipment requiring surge protection.
Mount the surge protection device on a slotted DIN rail bar 1m for DIN rail installation.
Add a miniature circuit breaker 1P 10A 6kA C Curve for circuit protection within the switchboard.
For combined circuit protection, pair the installation with an RCBO 1P 10A 6kA 30mA Type A.
