SPD Type 2 40kA 320V 3P+N Remote Contact NU6 Chint

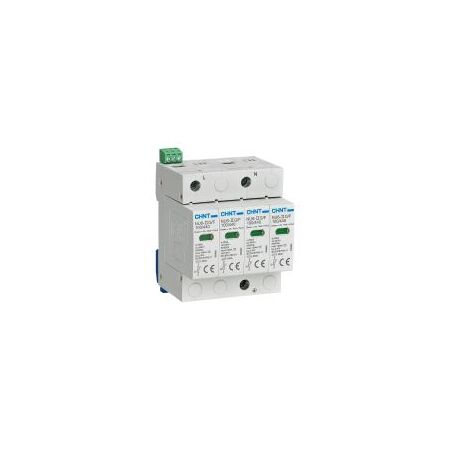

Chint NU6 Type 2 surge protection device features 40kA Imax, 320V Uc, 3P+N and remote signalling contact. Ideal for switchboard lightning and surge protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT NU6 Type 2 SPD, NU6-IIG/F 40kA 320V 3P+N, Three-Phase Surge Arrester with Remote Signalling
Technical Specifications
- SPD Type: Type 2
- Maximum Discharge Current Imax: 40kA at 8/20µs
- Nominal Discharge Current In: 20kA at 8/20µs
- Maximum Continuous Operating Voltage Uc: 320V AC
- Rated System Voltage: 230/400V AC, 50/60Hz
- Pole Configuration: 3P+N, 3+1 protection arrangement
- Voltage Protection Level Up: 1.6kV
- Remote Signalling Contact: 1NO + 1NC auxiliary contact
- Remote Contact Rating: 250V AC, 0.5A
- Short-Circuit Rating ISCCR: 10kA when tested with specified backup fuse
- Enclosure Protection: IP20
- Installation: TH35-7.5 DIN rail
- Operating Temperature: -5°C to +40°C
- Compliance: IEC/EN 61643-11; CE and RoHS markings
- Dimensions (H x L x W): 67.7mm x 126mm x 50mm
- Weight: 0.45 kg
Key Features
- Type 2 protection against lightning-induced and switching overvoltages
- 40kA maximum discharge current for three-phase switchboard protection
- 3P+N configuration suitable for TT distribution systems
- Integrated 1NO + 1NC remote signalling contact for alarm and status monitoring
- Visual status indication identifies when a protection module requires replacement
- Plug-in modular construction allows replacement of protection modules without replacing the base
- Compatible with TN-S, TN-C, TT and IT distribution arrangements when correctly selected
- DIN-rail mounting for switchboards and distribution boards
