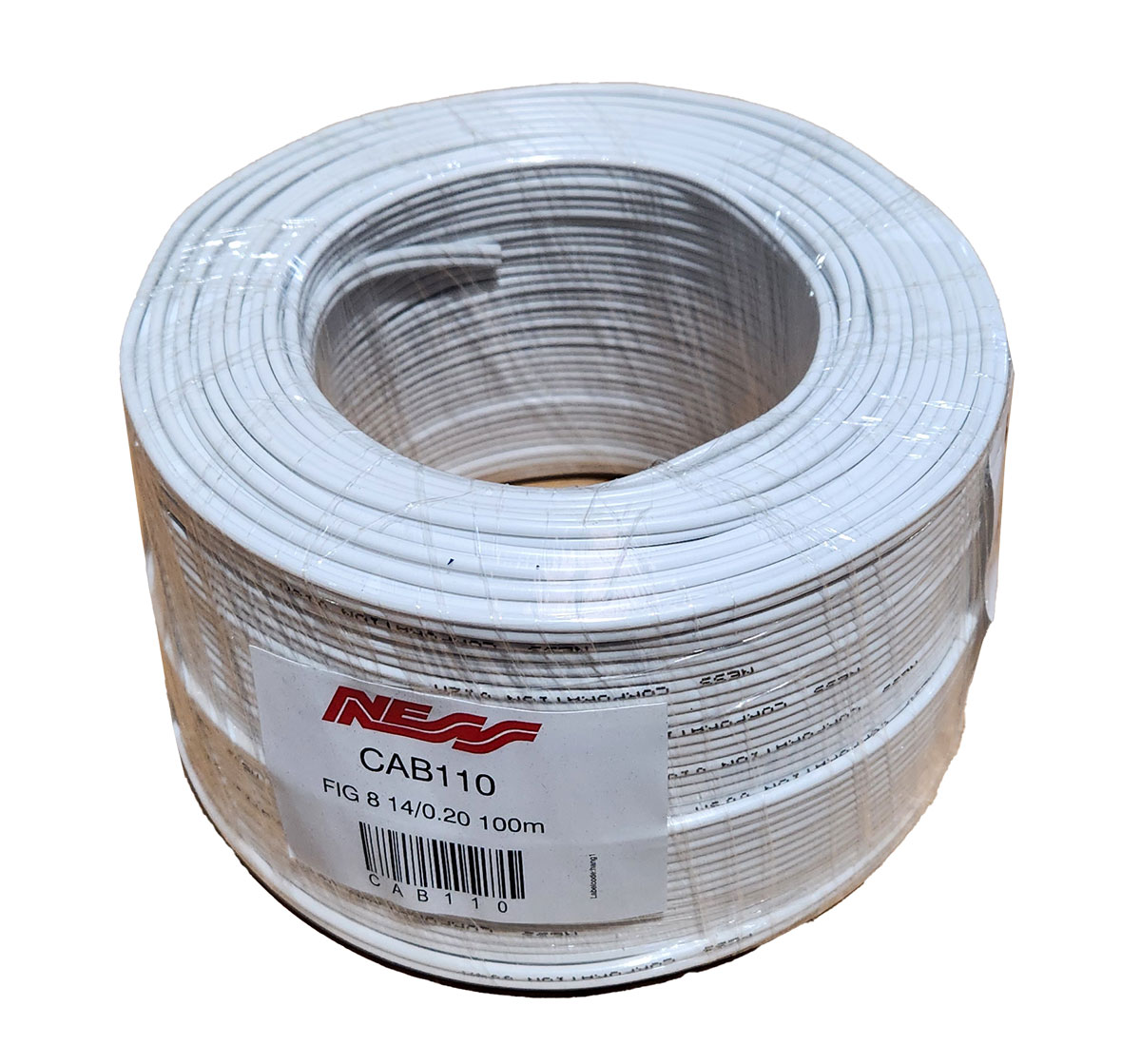

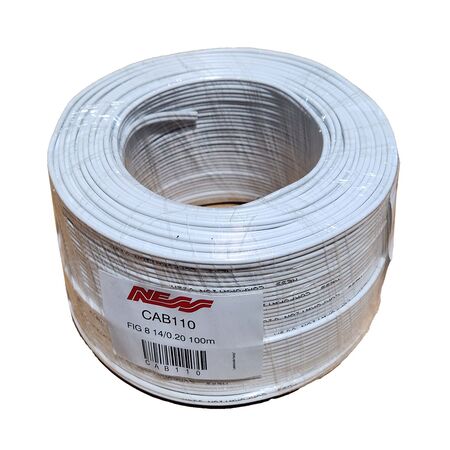

Speaker Cable Figure 8 14/0.20 100m Roll Ness
Ness figure 8 speaker cable features 14/0.20 conductors, flexible PVC insulation and a 100m roll. Ideal for speaker and low voltage wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 14/0.20 Figure 8 Cable, Twin Speaker Cable, Low Voltage Figure 8 Cable, Security Figure 8 Cable
Technical Specifications
- Conductor Configuration: 2-core figure 8 parallel cable
- Conductor Construction: 14 strands of 0.20mm copper wire per conductor
- Nominal Conductor Area: Approximately 0.44mm² per conductor
- Insulation: Flexible PVC
- Cable Colour: White
- Roll Length: 100 metres
- Application Voltage: Low-voltage systems
- Packaging: Hanked in a carton; pull cable from the centre of the hank
- Dimensions (H x L x W): 70mm x 200mm x 200mm
- Weight: 1.4 kg
Key Features
- Designed for speaker and other low-voltage wiring applications
- Flexible PVC insulation supports easier routing and installation
- Stranded 14/0.20 conductors provide flexibility compared with solid-core cable
- Figure 8 parallel construction allows the conductors to be separated when required
- White insulation with a 100m roll length for residential, commercial and security installations
Applications
- Speaker wiring and audio installations
- Low-voltage security and alarm systems
- Intercom and access-control wiring
- CCTV auxiliary and low-voltage power connections
- General-purpose extra-low-voltage equipment wiring
Standards & Compliance
- AS/NZS 3191: Relevant Australian/New Zealand standard for PVC-insulated flexible cords; product-specific compliance is not stated on the Ness product page.
Environmental Benefits
- Copper conductors are recyclable at end of service life
- PVC insulation may be recoverable through suitable cable-recycling streams
- Flexible construction and durable insulation can support longer service life and reduce replacement waste
Warranty Information
Ness Corporation’s general product warranty is 3 years from the date of purchase for Ness-manufactured or supplied products, unless otherwise specified. Subject to the manufacturer’s warranty terms and Australian Consumer Law.
Available Now
Available through Ness Corporation and authorised Australian distributors, subject to distributor stock.
