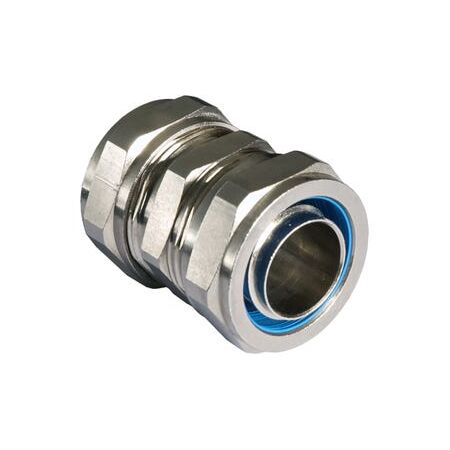

SPL Conduit Coupler 25mm IP66 to IP69 Nickel-Plated Brass Cabac
Designed for sealed conduit connections, this 25mm conduit coupler provides IP66, IP67, IP68 and IP69 ingress protection for demanding industrial environments. Nickel-plated brass construction with co-polyester seal and nylon inserts delivers high UV resistance and long-term durability in outdoor installations. Suitable for industrial processing, automation, utilities, mining, marine, and panel building applications with a temperature range from -65°C to +150°C static and -45°C to +150°C moving. Full technical specifications and sealing requirements are detailed further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- Thread Type: Fixed external male thread
- UV Resistance: Very high for outdoor applications
- Fire Safety: Self-extinguishing and halogen-free
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Professional installation recommended to ensure proper sealing and system integrity.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Halogen-free and self-extinguishing materials enhance fire safety and reduce toxic emissions
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac FITTING SPL Conduit Coupler 25MM is available for immediate purchase, ideal for industrial, automation, utility, mining, and marine applications.
FAQ
Q: What ingress protection ratings does this conduit coupler provide?
A: The fitting provides IP66, IP67, IP68 (10 bar, 30 minutes), and IP69 ingress protection ratings.
Q: What industries is this conduit coupler suitable for?
A: The coupler is designed for industrial processing, automation, utilities, mining, marine, and panel building applications.
