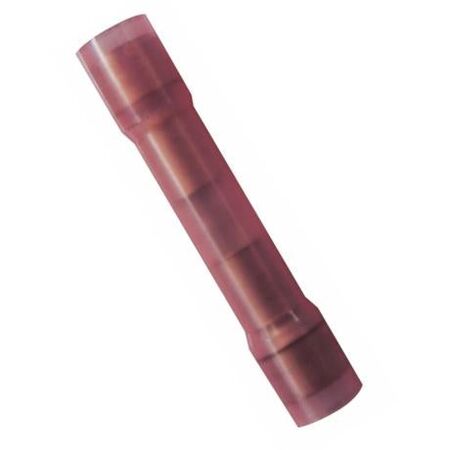

Splice Terminal 0.5-1.5mm² Insulated Red Pack of 50 Wattmaster
Wattmaster 0.5-1.5mm² insulated splice terminal, red, pack of 50. Suited for reliable conductor joins.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Wire Size Range: 0.5-1.5mm²
- Insulation Material: PVC
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Type: Pre-insulated double crimp splice terminal
- Colour: Red
- Pack Quantity: 50 pieces
- Dimensions (H x L x W): 5mm x 25mm x 10mm
- Weight: 0.1 kg
Key Features
- Translucent window splices allow visual inspection of the crimp
- Pre-insulated double crimp splice terminal for secure connections
- Colour-coded PVC insulation for easy wire size identification
- Easy wire entry design
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper crimping technique.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Splicing wires in automotive and machinery electrical systems
- General electrical maintenance and repair tasks requiring secure wire connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC insulation reduces the need for frequent replacements, minimizing waste
- Supports safe and efficient electrical connections, reducing energy loss
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Wattmaster for specific warranty terms.
Available Now
The Wattmaster Crimp Terminal Pre-Insulated Window Splice 0.5-1.5mm² Red 50 Pack is available for immediate purchase, ideal for electrical wiring and splicing applications.
