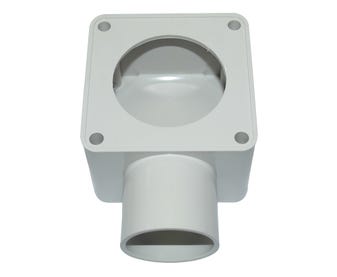

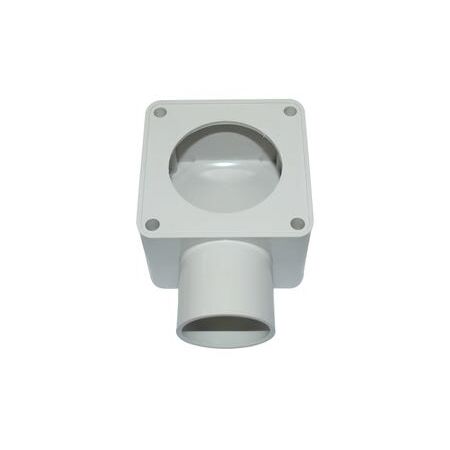

Square PVC Draw Box 40mm Hole UV-Stabilised Grey Cabac
Square PVC draw box with 40mm hole designed for conduit termination and cable access applications. Manufactured from UV-stabilised PVC with a grey finish for outdoor and underground installations. Features an open rear section for cable access and dimensions of 150mm x 150mm x 150mm for use with PVC cement connections. Refer to the section below for installation details and conduit compatibility information.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: UV-stabilised PVC
- Hole Diameter: 40mm
- Open rear section for cable access
- Designed for use with PVC cement
- Colour: Grey
- Dimensions (H x L x W): 150mm x 150mm x 150mm
- Weight: 0.3 kg
Key Features
- Square PVC draw box with 40mm hole for conduit termination
- Open rear section for easy cable installation
- UV-stabilised for durability in outdoor and underground environments
- Designed for use with PVC cement for secure connections
- BEP certified for environmental compliance
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure secure conduit connections and compliance with electrical standards.
Applications
- Underground service conduit termination
- Cable installation in cavities
- Outdoor and underground electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- BEP certified ensuring environmentally responsible manufacturing
- UV-stabilised material extends product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Draw Box Square with Hole PVC 40mm Grey is available now for immediate purchase. Ideal for underground conduit termination and cable management in residential and commercial electrical installations.
FAQ
Q: What applications is the Square PVC Draw Box 40mm Hole suitable for?
A: It is suitable for underground service conduit termination, cable installation in cavities, and outdoor or underground electrical installations.
Q: Does this draw box comply with Australian standards?
A: Yes, it complies with AS/NZS 3000 Wiring Rules for electrical installations.
Pair this draw box with a standard bend to maintain conduit direction changes on underground runs.
Install a conduit coupling where additional conduit sections need to be joined on site.
Include a step reducer fitting when transitioning conduit sizes within the same installation.
