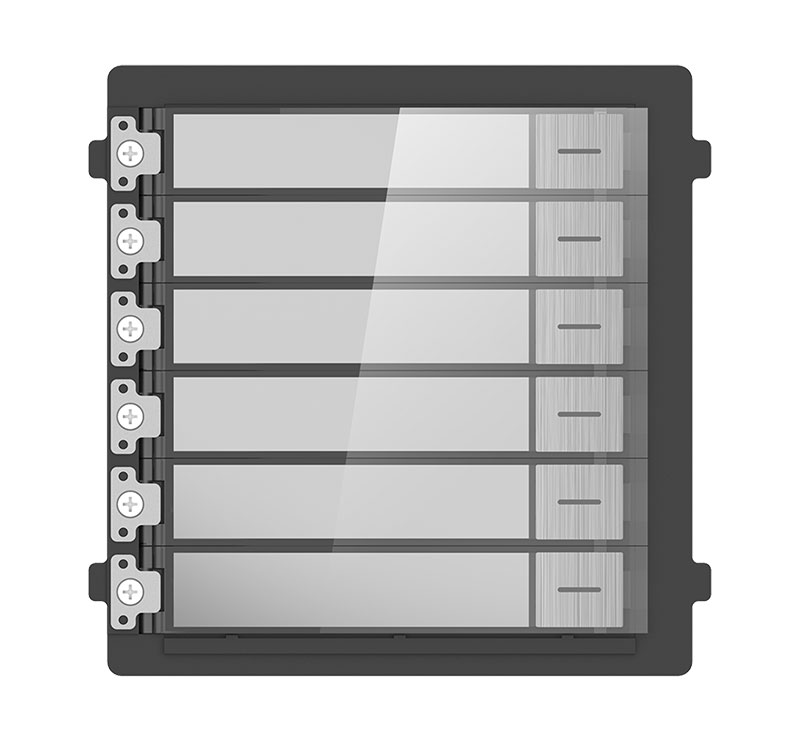

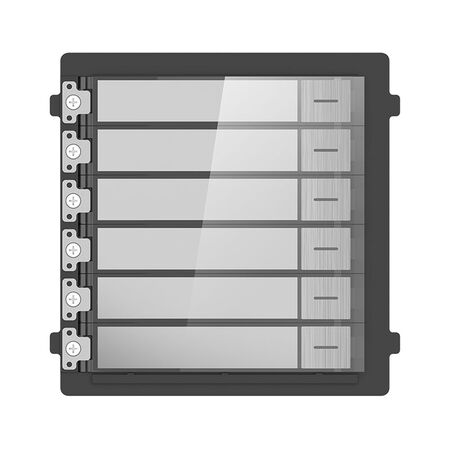

Stainless Steel Door Station DS-KD-KK/S Hikvision
Hikvision stainless steel door station features a stainless steel finish. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision KD8 Series Pro Modular Door Station, Stainless Steel Nametag Module, Video Intercom Call Button Module
Technical Specifications
- Module Type: Modular video intercom nametag and call-button unit
- Call Buttons: 6, including 4 button covers
- Power Supply: 12 VDC; powered for other module
- Power Consumption: 0.8 W
- Network Interface: 1 x RJ-45, 10/100 Mbps self-adaptive Ethernet
- Network Protocols: TCP/IP and RTSP
- RS-485: 2 interfaces
- Installation: Flush mounting or surface mounting with compatible bracket
- Protective Rating: IP65
- Impact Protection: IK07
- Operating Temperature: -40°C to 55°C
- Operating Humidity: 10% to 95% relative humidity
- Material: Stainless steel finish
- Application Environment: Outdoor
- Dimensions (H x L x W): 100mm x 98.5mm x 34.2mm
- Weight: 0.265 kg
Key Features
- Six one-touch resident call buttons
- Stainless steel finish for modular door-station installations
- IP65 weather protection for outdoor use
- IK07 impact protection
- Flush-mounting and surface-mounting options
- Backlight compensation
- Designed for integration with Hikvision KD8 Series modular door stations
- Requires a compatible mounting bracket
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or intercom technician. Connect to a compatible Hikvision modular door-station system, suitable 12 VDC supply and network infrastructure in accordance with the manufacturer's installation instructions.
Applications
- Apartment and multi-residential entry systems
- Commercial building access points
- Villa and residential intercom installations
- Outdoor modular video intercom door stations
- Hikvision KD8 Series Pro modular door-station assemblies
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC compliance listed by Hikvision for the C-Tick/EMC approval
Environmental Benefits
- Stainless steel construction is durable and recyclable, supporting extended service life and reduced replacement waste
- Low 0.8 W power consumption helps minimise operating energy use
- Long-term outdoor suitability reduces the frequency of component replacement
Warranty Information
Hikvision's published warranty documentation lists 36 months for access control and intercom products. Australian warranty service is subject to purchase through an authorised Hikvision distribution channel and applicable local terms.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
