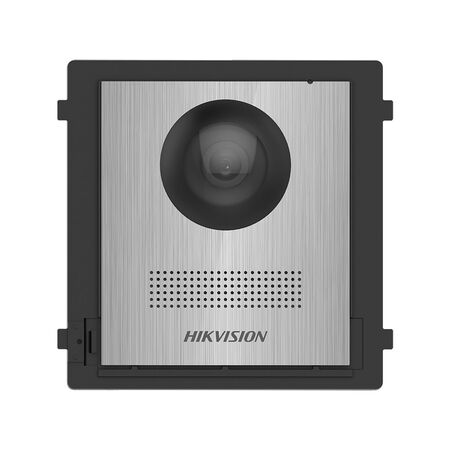

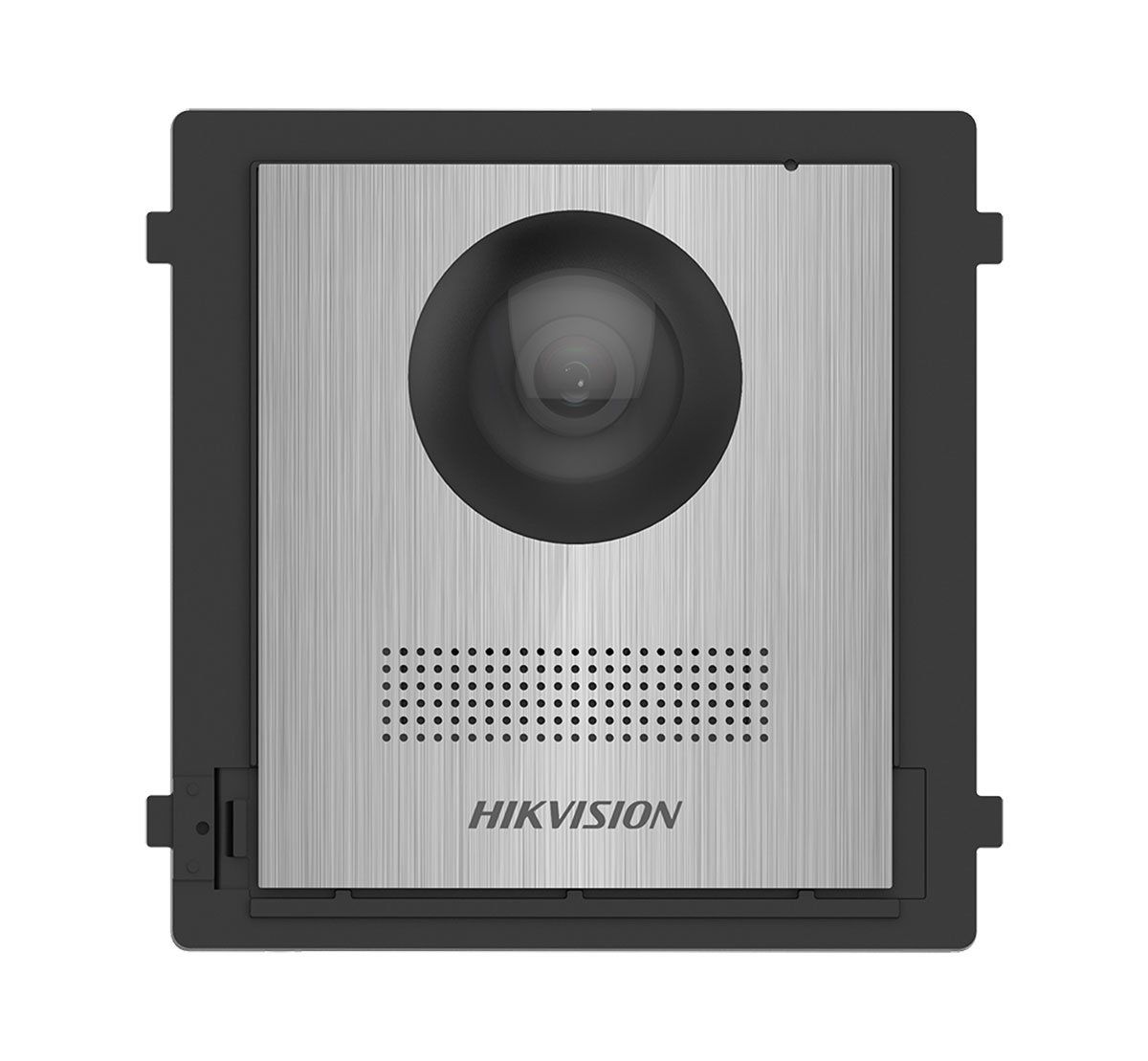

Stainless Steel Door Station DS-KD8003-IME1/NS Hikvision
Hikvision stainless steel door station features a stainless steel finish. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision KD8 Series Pro Modular Door Station, Hikvision IP Video Intercom Door Station, Hikvision DS-KD8003-IME1/NS Main Module
Technical Specifications
- Camera: 2 MP HD fisheye camera
- Field of View: Horizontal 146°, vertical 82°
- Video Compression: H.264
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Features: Noise suppression and echo cancellation
- Lock Control: 2 lock relay outputs
- Alarm Inputs: 4 inputs
- Network Interface: 10/100 Mbps self-adaptive RJ-45
- Power Supply: IEEE 802.3af standard PoE or 12 VDC, 1 A
- Power Consumption: ≤10 W
- Ingress Protection: IP65
- Operating Temperature: -40°C to +55°C
- Operating Humidity: 10% to 95% relative humidity, non-condensing
- Installation: Flush mounting or surface mounting with suitable bracket
- Material: Stainless steel
- Application Environment: Outdoor
- Dimensions (H x L x W): 99.8mm x 43.9mm x 98mm
- Weight: 0.415 kg
Key Features
- 2 MP fisheye camera with infrared supplementary lighting
- Stainless steel construction for modular intercom installations
- Supports video intercom communication with compatible indoor and master stations
- Provides dual-lock control for access-control applications
- Standard PoE simplifies network and power connection
- IP65 protection for suitable outdoor installations
- Supports modular expansion with compatible Hikvision sub-modules
- Web-based configuration and remote device management
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Connect the PoE or 12 VDC supply, network cabling, locks and associated access-control wiring in accordance with the manufacturer's installation instructions and applicable Australian requirements.
Applications
- Residential villa and townhouse video intercom systems
- Apartment and multi-dwelling entrance stations
- Commercial building access-control systems
- Outdoor pedestrian door entrances
- Modular Hikvision IP video intercom installations
Standards & Compliance
- AS/NZS 62368.1 is the relevant Australian/New Zealand equipment safety standard for audio, video and information and communications technology equipment; product-specific Hikvision compliance documentation was not located.
Environmental Benefits
- Stainless steel components are durable and readily recyclable at end of service life
- IP65 protection and stainless steel construction can help extend service life and reduce replacement waste
- Power over Ethernet and low-voltage operation can simplify system cabling and reduce the need for separate power infrastructure
Warranty Information
Typically supplied with a 3-year Australian warranty through authorised Hikvision distributors, subject to the seller's warranty terms, proof of purchase and authorised distribution requirements.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors; confirm current stock and regional firmware availability before ordering.
