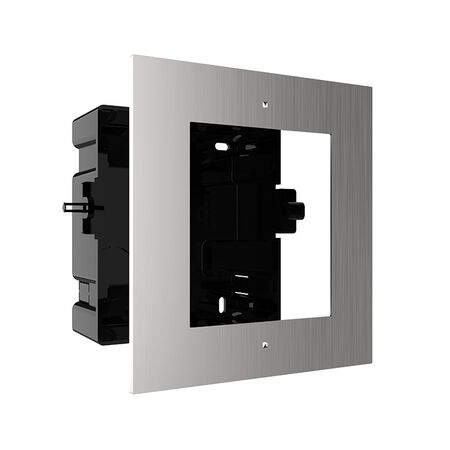

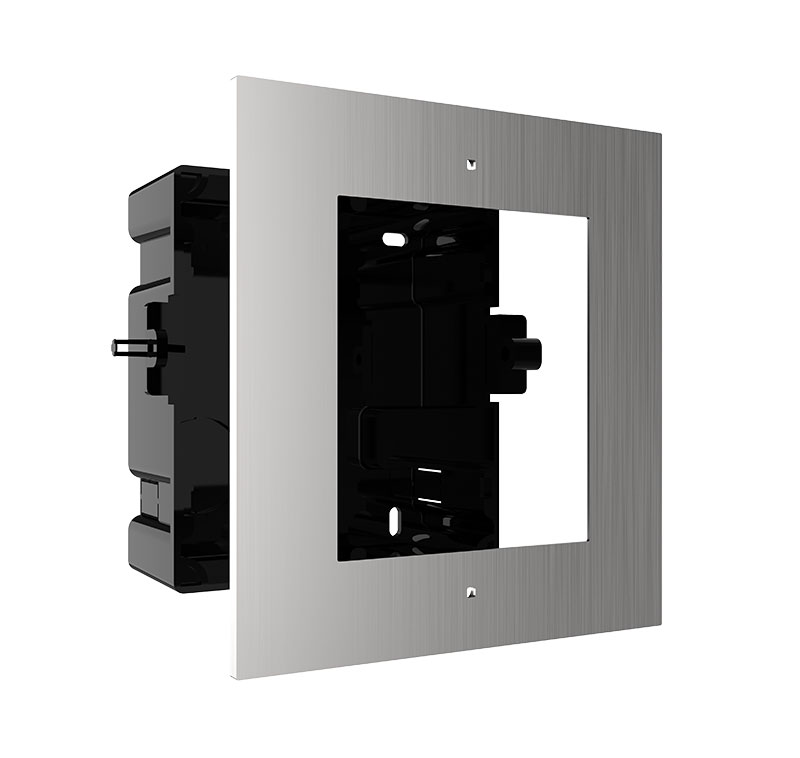

Stainless Steel Flush Mount Bracket DS-KD-ACF1/S Hikvision
Hikvision flush mount bracket features a stainless steel finish. Ideal for Hikvision intercom door station installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DS-KD-ACF1/S, Hikvision Single-Module Flush Mounting Bracket, Stainless Steel Intercom Flush Mount Frame
Technical Specifications
- Model: DS-KD-ACF1/S
- Mounting Type: Flush mount
- Module Capacity: One modular door station module
- Cover Material: Stainless steel
- Gang Box Material: Plastic
- Cover Dimensions: 134 x 124 x 11.5 mm
- Gang Box Dimensions: 117 x 107 x 45 mm
- Working Temperature: -40°C to 55°C
- Working Humidity: 10% to 95% non-condensing
- Net Weight: 195 g
- Included Components: Gang box, cover, screws and connection accessories
- Dimensions (H x L x W): 124mm x 134mm x 11.5mm
- Weight: 0.195 kg
Key Features
- Designed for recessed installation of one Hikvision modular door station module
- Stainless steel cover for improved durability in exposed or public entry locations
- Includes a matching plastic gang box for in-wall installation
- Compatible with selected Hikvision DS-KD modular intercom door station components
- Compact flush-mount design provides a neat finished installation
Applications
- Hikvision modular video intercom door stations
- Residential entry and access-control systems
- Commercial and multi-residential building entrances
- Recessed indoor or outdoor door station installations
Environmental Benefits
- Stainless steel is durable and recyclable at the end of service life
- Robust construction can reduce replacement frequency and associated material waste
- Plastic and metal components can be separated for appropriate end-of-life recycling where local facilities accept them
Warranty Information
Covered by Hikvision warranty terms applicable to the product and authorised Australian distribution channel; retain proof of purchase and confirm the applicable warranty period with the supplier.
Available Now
Available through Hikvision and authorised Australian security and access-control distributors.
