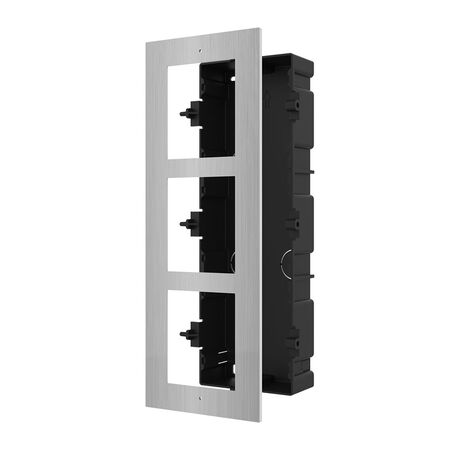

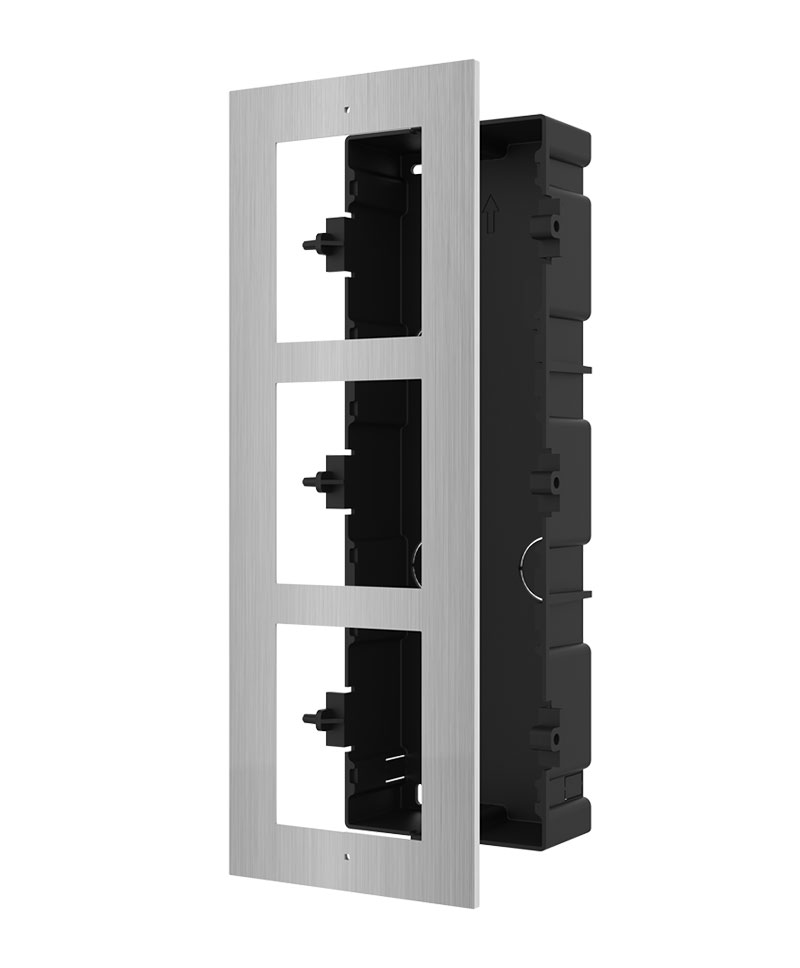

Stainless Steel Flush Mount Bracket DS-KD-ACF3/S Hikvision
Hikvision flush mount bracket features a stainless steel finish. Ideal for Hikvision intercom door station installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD-ACF3/S, 3-Module Flush Mount Housing, Stainless Steel Intercom Mounting Frame, Flush Mount Gang Box
Technical Specifications
- Mounting Type: Flush mount
- Module Capacity: 3 Hikvision door station modules
- Cover Material: Stainless steel
- Gang Box Material: Plastic
- Working Temperature: -40°C to +55°C
- Working Humidity: 10% to 95%
- Package Contents: Front panel, gang box, cover screws, connecting lines and mounting accessories
- Compatibility: Hikvision modular video intercom door stations
- Dimensions (H x L x W): 337.8mm x 45mm x 124mm
- Weight: 0.395 kg
Key Features
- Designed for flush mounting of three Hikvision modular intercom modules
- Stainless steel front cover for a durable, corrosion-resistant finish
- Includes a recessed gang box for concealed installation
- Compatible with Hikvision modular door station components
- Suitable for indoor and outdoor intercom entry installations
Applications
- Residential video intercom door stations
- Multi-residential apartment entry systems
- Commercial and office access control entrances
- Flush-mounted Hikvision modular intercom installations
Standards & Compliance
- Associated electrical and communications wiring installations should comply with AS/NZS 3000:2018 and applicable local requirements; no separate product certification was identified for the passive mounting bracket.
Environmental Benefits
- Stainless steel is durable and recyclable, supporting recovery of material at end of service life
- Robust construction can extend service life and reduce replacement waste
- Passive mounting component has no electrical power consumption during operation
Warranty Information
Warranty is subject to the applicable Hikvision Australia or authorised distributor warranty terms. Confirm the specific accessory warranty period at purchase.
Available Now
Available through Hikvision and authorised Australian distributors, subject to distributor stock levels.
