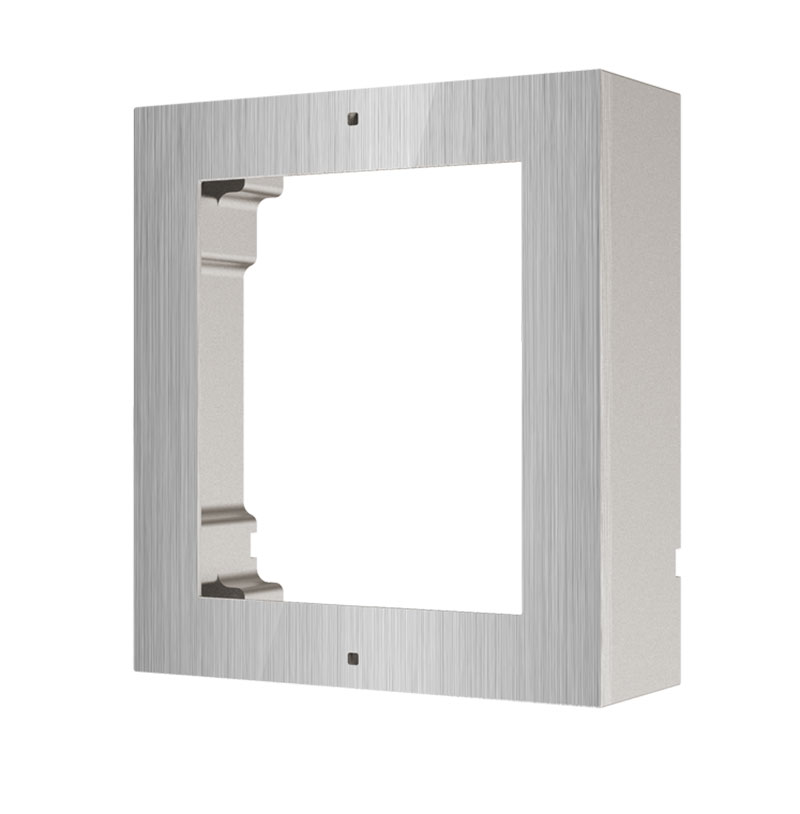

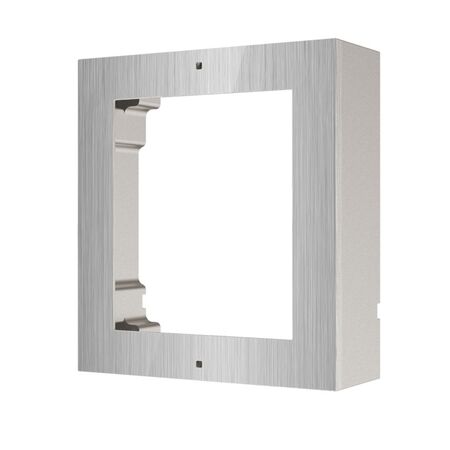

Stainless Steel Wall Mount Bracket DS-KD-ACW1/S Hikvision
Hikvision wall mount bracket features a stainless steel finish. Ideal for Hikvision intercom door station installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD-ACW1/S, Hikvision Modular Intercom Surface Mount, Single-Module Door Station Mounting Frame
Technical Specifications
- Application: Surface mounting for one Hikvision modular door station module
- Cover Material: Stainless steel
- Installation Frame Material: Aviation aluminium
- Cover Dimensions: 117 x 107 x 4 mm
- Installation Frame Dimensions: 117 x 107 x 32.7 mm
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 10% to 95% relative humidity
- Included Accessories: Mounting frame, cover, screws, wiring and installation hardware
- Dimensions (H x L x W): 117mm x 32.7mm x 107mm
- Weight: 0.15 kg
Key Features
- Stainless steel front cover
- Designed for one Hikvision modular door station module
- Surface-mount configuration for installations without a recessed wall cavity
- Aviation aluminium installation frame
- Suitable for indoor and sheltered outdoor intercom installations
- Includes mounting and connection accessories
Professional Installation Requirements
- The bracket can be mechanically mounted by a competent installer. Any associated fixed electrical wiring, mains connection or door-access power supply work must be completed by a suitably licensed electrician in accordance with applicable Australian requirements.
Applications
- Residential video intercom installations
- Apartment and townhouse entry systems
- Commercial access-control door stations
- Office, retail and multi-unit building entrances
- Retrofit intercom installations requiring surface mounting
Environmental Benefits
- Stainless steel and aluminium components are durable and widely recyclable at end of service life
- Corrosion-resistant construction can extend product service life and reduce replacement waste
- Reusable mounting hardware supports maintainable modular intercom installations
Warranty Information
Specific Hikvision warranty coverage for this accessory is not published in the available manufacturer documentation. Warranty is subject to Hikvision Australia and the authorised distributor's current terms.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
