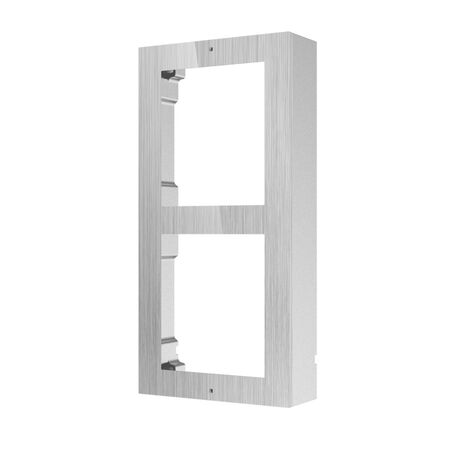

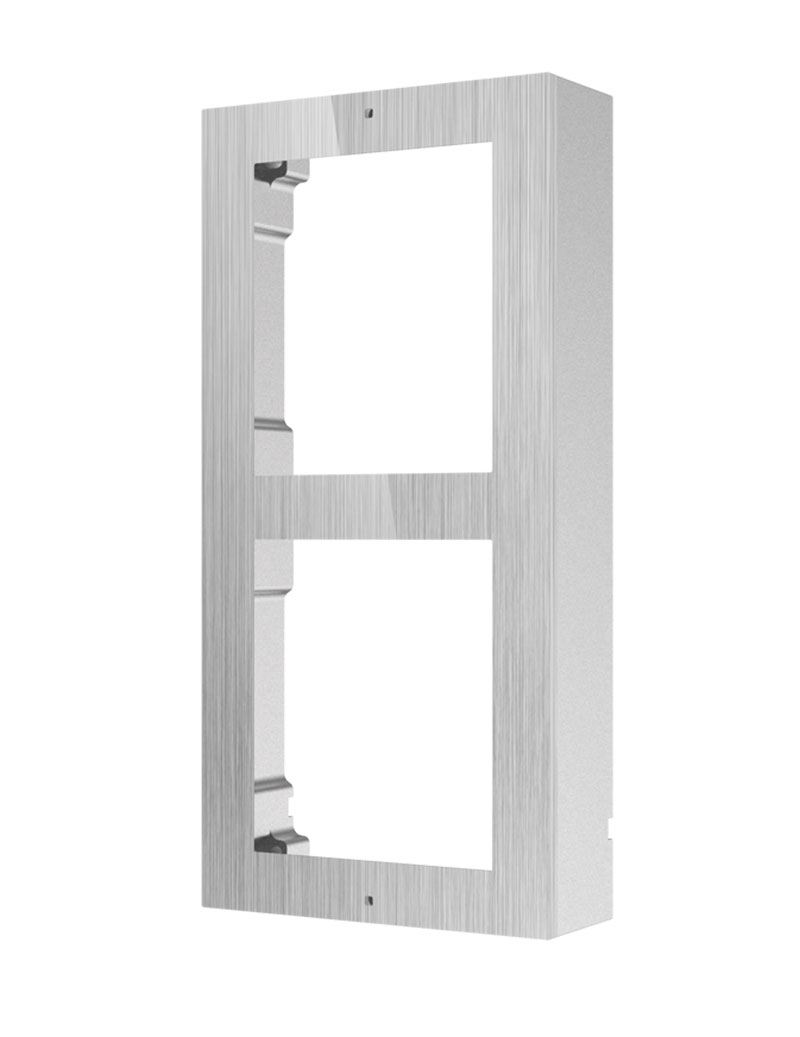

Stainless Steel Wall Mount Bracket DS-KD-ACW2/S Hikvision
Hikvision wall mount bracket features a stainless steel finish. Ideal for Hikvision intercom door station installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD-ACW2/S Surface Mount Box, Two-Module Intercom Bracket, Stainless Steel Door Station Mount
Technical Specifications
- Mounting Type: Surface wall mount
- Module Capacity: Two Hikvision modular door-station modules
- Cover Material: Stainless steel
- Installation Frame Material: Aviation aluminium
- Cover Dimensions: 219 H x 107 W x 4 D mm
- Installation Frame Dimensions: 219 H x 107 W x 32.7 D mm
- Working Temperature: -40°C to 60°C
- Working Humidity: 10% to 95%, non-condensing
- Included Components: Installation frame, cover, mounting hardware and module connection cable
- Dimensions (H x L x W): 219mm x 32.7mm x 107mm
- Weight: 0.3 kg
Key Features
- Designed for surface mounting Hikvision modular intercom door stations
- Accommodates two modular door-station modules
- Stainless steel cover for improved durability and corrosion resistance
- Aviation-aluminium installation frame
- Suitable for exposed residential, commercial and multi-dwelling entrances
- Includes required mounting accessories
Applications
- Surface-mounted Hikvision modular video intercom installations
- Residential entrance door stations
- Commercial and multi-residential access-control entrances
- Retrofit installations where surface cabling is preferred
Environmental Benefits
- Stainless steel and aluminium components are recyclable at end of service life
- Durable metal construction can extend service life and reduce replacement waste
- Passive mounting accessory has no operational energy consumption
Warranty Information
Warranty is subject to Hikvision Australia terms and the authorised distribution channel. Confirm the applicable product warranty period at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
