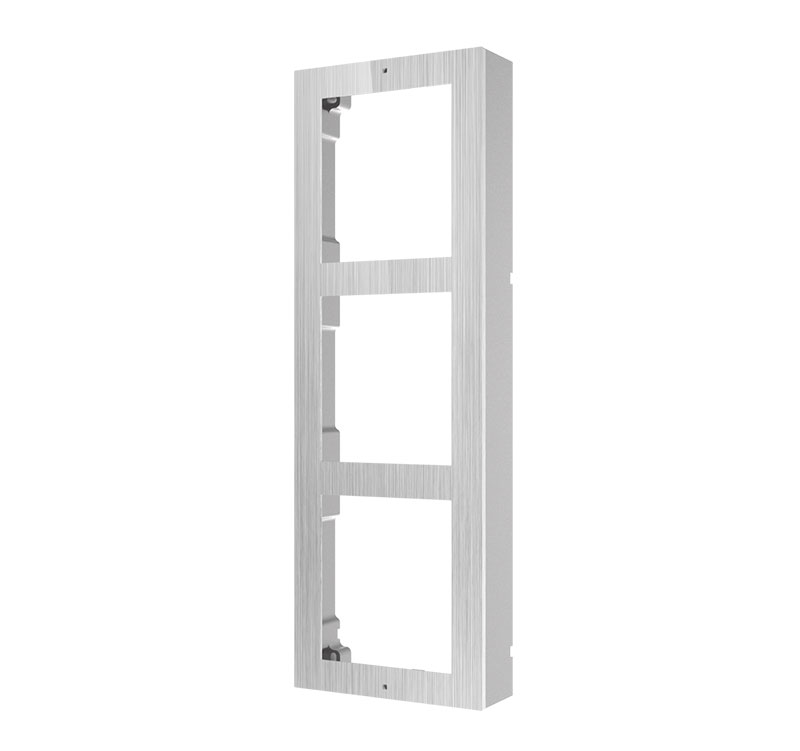

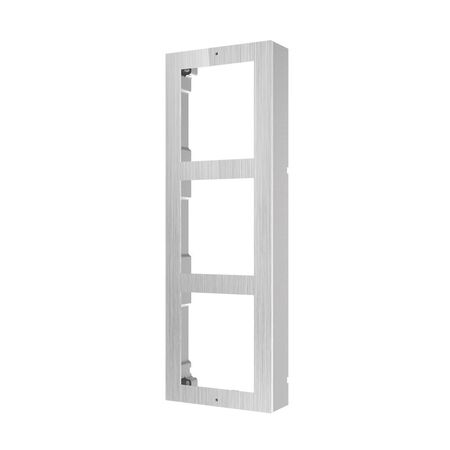

Stainless Steel Wall Mount Bracket DS-KD-ACW3/S Hikvision
Hikvision wall mount bracket features a stainless steel finish. Ideal for Hikvision intercom door station installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Modular Door Station Surface Mount Box, Hikvision 3-Module Wall Mount Bracket, DS-KD-ACW3/S Surface Mounting Frame
Technical Specifications
- Product Type: 3-module surface-mount bracket for modular video intercom door stations
- Compatibility: Hikvision modular video intercom system
- Module Capacity: 3 modules
- Cover Material: Stainless steel
- Installation Frame Material: Aviation aluminium
- Cover Dimensions: 320.8 x 107 x 4 mm
- Installation Frame Dimensions: 320.8 x 107 x 32.7 mm
- Working Temperature: -40°C to 60°C
- Mounting Method: Surface wall mount
- Included Components: Three-module frame, front panel, button cover and installation accessories
- Dimensions (H x L x W): 107mm x 320.8mm x 32.7mm
- Weight: 0.45 kg
Key Features
- Stainless steel front cover for a durable, corrosion-resistant finish
- Designed for three Hikvision modular intercom modules
- Aviation aluminium installation frame provides a rigid mounting structure
- Suitable for residential, commercial and access-control entry installations
- Wide operating temperature range for indoor or outdoor deployment
- Surface-mount design simplifies installation without recessing the wall
Applications
- Hikvision modular video intercom door station installations
- Residential entry and visitor communication systems
- Commercial building access-control entrances
- Apartment, townhouse and gated-community intercom systems
- Outdoor or exposed wall-mounted door station assemblies
Environmental Benefits
- Stainless steel and aluminium components are recyclable at end of service life
- Durable metal construction can reduce replacement frequency and installation waste
- Corrosion-resistant materials support a longer service life in exposed installations
Warranty Information
Hikvision Australia warranty support applies through authorised distribution channels. Brackets are listed as accessories or consumable mounting components in Hikvision warranty documentation, with a 12-month warranty period indicated for brackets; confirm coverage with the supplying authorised distributor.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
