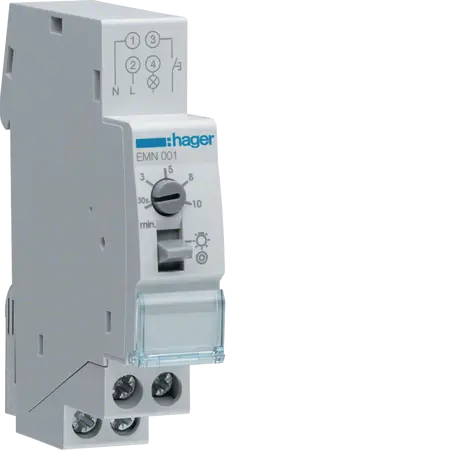

Staircase Time Lag Switch 230V 16A Adjustable Delay Hager
Staircase time lag switch with 230V operational voltage and 16A current—ideal for residential and commercial lighting automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 230 - 230 V
- Frequency: 50 - 60 Hz
- Rated current: 16 A
- Number of modules: 1
- Type of connection: Screw terminal, Wire connection
- Mounting on: DIN rail
- Max. load fluorescent lamp parallel compensated: 1000 VA
- Max. load fluorescent lamp: 3600 VA
- Operating temperature: -10 - 55 °C
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1.5 - 10 mm²
- Time delay: 30 S - 10 Min
- Width: 17.50 mm
- Depth: 64 mm
- Dimensions (H x L x W): 90mm x 64mm x 17.50mm
- Weight: 0.2 kg
Key Features
- Suitable for DIN rail mounting
- Rated operational voltage: 230 V
- Rated current: 16 A
- Adjustable time delay: 30 seconds to 10 minutes
Professional Installation Requirements
- A qualified electrician is recommended for installation to ensure safety and compliance with standards.
Applications
- Residential buildings requiring timed lighting solutions
- Commercial spaces needing controlled lighting automation
Standards & Compliance
- Complies with relevant electrical safety standards for time lag switches
Environmental Benefits
- Reduces unnecessary power consumption
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Hager EMN001 Stair Case Time Lag Switch is available for immediate purchase. Ideal for energy-efficient lighting control in various settings.
