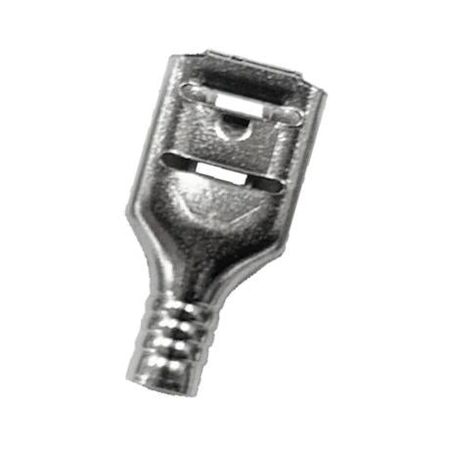

Stove Female Disconnect 1.5-2.5sqmm Bare Pack of 20 Wattmaster
Wattmaster non-insulated stove female disconnect crimp terminal, 1.5-2.5sqmm. High-temp appliance use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 1.5-2.5 mm²
- Voltage Rating: 300V
- Maximum Temperature: 482°C
- Material: Steel terminal with nickel plating
- Insulation: Non-insulated
- Halogen Free: Yes
- Dimensions (H x L x W): 25mm x 35mm x 10mm
- Weight: 0.1 kg
Key Features
- Steel terminal nickel plated for high temperature connections
- High temperature female disconnect for 1.5 to 2.5 mm² conductors
- Connector rated for 300V
- Non-insulated design
- Maximum operating temperature rating of 482°C
- Halogen free for safer use
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical wiring connections in high temperature environments
- Stove element wiring and other heating appliances
- Industrial and domestic electrical installations requiring high temperature rated terminals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free construction reduces harmful emissions in case of fire
- Durable nickel plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Terminal Non-Insulated Stove Female Disconnect 1.5-2.5mm² 300V is available for immediate purchase, ideal for high temperature electrical connection applications.
