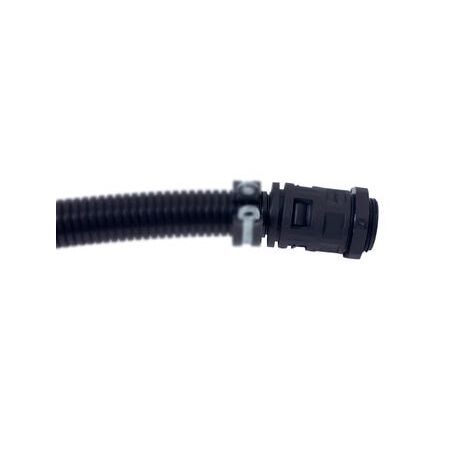

Straight Quick Connector 16mm M16 IP66 Rated Grey Cabac
Designed for 16mm conduit, this straight quick connector features an M16 x 1.5 thread with tool-free push-fit installation for fast assembly. Manufactured from Polyamide nylon (PA6), it delivers IP66 ingress protection with UV resistance and UL94 V-0 flame retardancy. Complies with AS/NZS 3000 Wiring Rules for electrical installations. See the full specifications below for installation requirements, ratings, and application details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 16mm
- Thread Size: M16 x 1.5
- Material: Polyamide nylon (PA6)
- Temperature Rating: -40 to +115°C (intermittent to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon
- Halogen, phosphor and cadmium free
- Self-locking push-fit installation with no tools required
- IP66 rated ingress protection
- UV resistant and flame retardant (UL94 V-0)
- Temperature rating from -40 to +115°C (intermittent to +150°C)
- Anti-static and RoHS compliant
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with electrical standards and secure fitting.
Applications
- Cable management in industrial and commercial electrical installations
- Use with CABFLX low fire hazard conduits
- Suitable for environments requiring liquid tight conduit connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Free from halogen, phosphor, and cadmium reducing environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Flame retardant and self-extinguishing properties enhance safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Straight Quick Connector 16MM M16 is available for immediate purchase, ideal for electrical conduit installations requiring secure, liquid tight connections.
FAQ
Q: What conduit size and thread does this connector support?
A: It is designed for 16mm conduit and features an M16 x 1.5 thread.
Q: What makes this connector suitable for demanding electrical installations?
A: It offers IP66 ingress protection, self-locking tool-free installation, UV resistance, UL94 V-0 flame retardancy, and Polyamide nylon (PA6) construction.
Pair this straight quick connector with a straight gland fitting when terminating compatible corrugated conduit installations.
A straight gland can be used where conduit entry requires a compatible gland solution.
Install a sweep bend to create smooth conduit direction changes while maintaining efficient cable routing.
