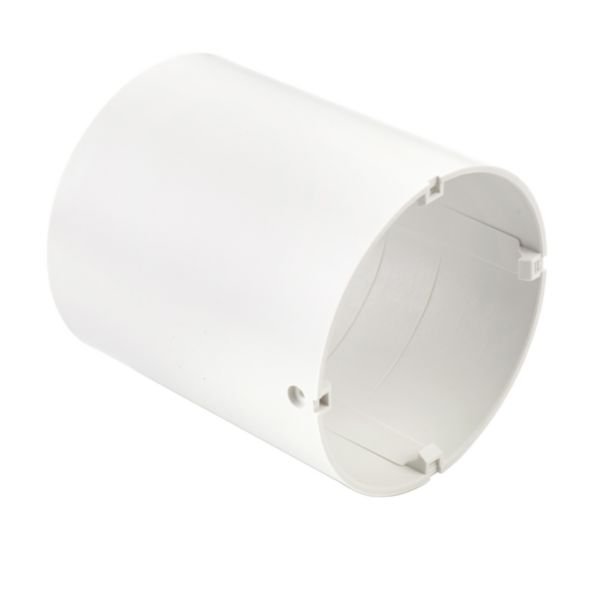

Surface Mount Back Box for MWS3A | Thermoplastic | Matt White Finish | @Each of 1 | by CP Electronics
The Surface Mount Back Box for MWS3A is crafted from durable thermoplastic with a sleek matt white finish, making it perfect for both residential and commercial applications. Designed for horizontal and vertical mounting, it features a rear cable entry and operates within a temperature range of -10 to 50 °C. Ideal for MWS3A presence detectors, this back box ensures reliable performance and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surface Mount Back Box for MWS3A | Thermoplastic | Matt White Finish | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS3A-DBB
Alternatively Known As: Surface Mount Back Box for MWS3A, CP Electronics Back Box, MWS3A Mounting Box
Technical Specifications
- Material: Thermoplastic
- Colour: White (RAL 9002 similar)
- Shape: Round
- Diameter: 85 mm
- Depth: 93 mm
- Mounting: Surface mount, horizontal and vertical
- Cable entry: Yes, inlet from rear
- Number of units: 1
- Operating temperature: -10 to 50 °C
- Halogen free: Yes
- Surface finish: Matt
- Degree of protection (IP): Other
- Degree of impact strength (IK): Other
- Number of earthing terminals: 0
- Dimensions (H x L x W): 85mm x 93mm x 85mm
- Weight: 0.2 kg
Key Features
- Surface mount back box designed specifically for MWS3A series
- Made from thermoplastic material with a matt white finish
- Halogen free and untreated surface protection
- Cable entry available with inlet from the rear
- Round shape with 85 mm diameter
- Operating temperature range from -10 to 50 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Surface mounting for MWS3A series presence detectors
- Suitable for horizontal and vertical mounting directions
- Used in residential, commercial, and industrial presence detection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces environmental impact
- Durable thermoplastic construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty details.
Available Now
The CP Electronics MWS3A Surface Mount Back Box BESA Fixing White is available for immediate purchase, ideal for use with MWS3A presence detectors in various building applications.
