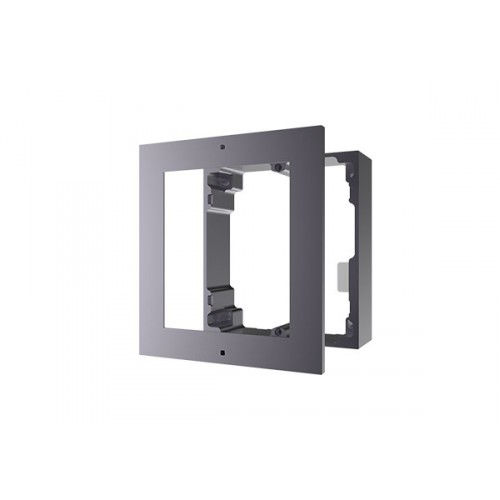

Surface Mount Housing 1 Module to Suit Intercom Hikvision
Hikvision surface mount housing holds 1 module of a modular door station. Ideal for video intercom installs on wall surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD-ACW1 Surface Mount Frame, Hikvision Modular Door Station Surface Mount Bracket, Single-Module Intercom Housing
Technical Specifications
- Model: DS-KD-ACW1
- Compatibility: Hikvision modular door station modules, including DS-KD8003 series
- Mounting Type: Surface mount
- Capacity: 1 module
- Material: Aviation aluminium
- Cover Dimensions: 117 × 107 × 4 mm
- Installation Frame Dimensions: 117 × 107 × 32.7 mm
- Working Temperature: -40°C to 55°C
- Working Humidity: 10% to 95%, non-condensing
- Gang Box: Not included
- Package Contents: Installation frame, cover plate, mounting plate, screws and installation hardware
- Dimensions (H x L x W): 117mm x 107mm x 32.7mm
- Weight: 0.22 kg
Key Features
- Holds one Hikvision modular door station module
- Designed for wall-surface installation
- Aviation aluminium cover and installation frame
- Suitable for custom modular video intercom configurations
- Includes the primary mounting hardware required for installation
- Can be combined with compatible Hikvision modular door station accessories
Professional Installation Requirements
- No specialist installation is required for the passive housing; secure the frame to a suitable wall surface and complete any associated low-voltage intercom wiring in accordance with the equipment instructions and applicable local requirements.
Applications
- Residential video intercom installations
- Apartment and multi-dwelling entrance systems
- Commercial access control entry points
- Single-module Hikvision modular door stations
- Wall-mounted external or internal intercom panels
Environmental Benefits
- Aluminium construction is durable and widely recyclable at end of service life
- Robust housing construction can extend the service life of the installed intercom module and reduce replacement waste
- Passive mounting accessory has no ongoing electrical energy consumption
Warranty Information
Hikvision Australia warranty coverage is subject to the applicable contract terms and authorised distribution channel. Australian reseller warranty schedules commonly list 1 year for Hikvision accessories and brackets; confirm the warranty period at purchase.
Available Now
Available through Hikvision and authorised Australian security, access control and intercom distributors.
