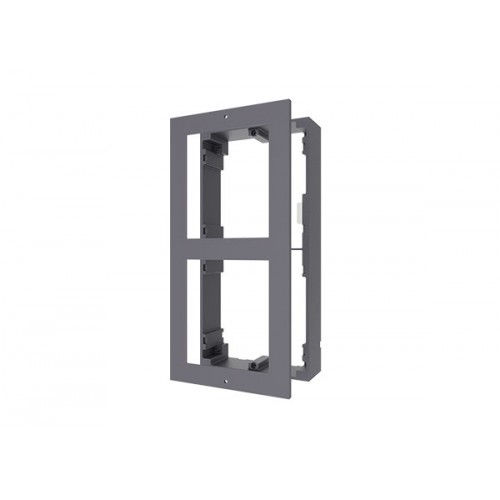

Surface Mount Housing 2 Module to Suit Intercom Hikvision
Hikvision surface mount housing holds 2 modules of a modular door station. Ideal for video intercom installs on wall surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision dual-module surface mount frame, two-module intercom housing, modular door station surface mounting bracket
Technical Specifications
- Model: DS-KD-ACW2
- Mounting Type: Surface mount
- Module Capacity: Two Hikvision modular door station modules
- Material: Aviation-grade aluminium
- Operating Temperature: -40°C to +55°C
- Operating Humidity: 10% to 95%, non-condensing
- Package Contents: Two-module frame, front panel, button cover, connecting cable and mounting hardware
- Compatible System: Hikvision modular video intercom door station
- Dimensions (H x L x W): 219mm x 107mm x 32.7mm
- Weight: 0.42 kg
Key Features
- Holds two compatible Hikvision modular door station modules
- Designed for wall-surface installation
- Aviation-grade aluminium frame and cover
- Suitable for combining a main video intercom module with a keypad, card reader, button or other compatible module
- Includes frame, cover plate, module cable, screws and associated mounting hardware
- Designed for residential, multi-dwelling and commercial access control installations
Applications
- Modular video intercom door stations
- Residential apartment and townhouse entrances
- Commercial building entry points
- Multi-tenant access control systems
- Wall-mounted Hikvision door station installations
Environmental Benefits
- Aluminium construction is durable and recyclable at end of service life
- Robust construction can extend product lifespan and reduce replacement waste
- Passive mounting hardware requires no operating power
Warranty Information
Hikvision warranty support applies when purchased through authorised Australian distribution partners. The specific warranty term for the DS-KD-ACW2 was not stated in the manufacturer documentation located; confirm the applicable term with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
