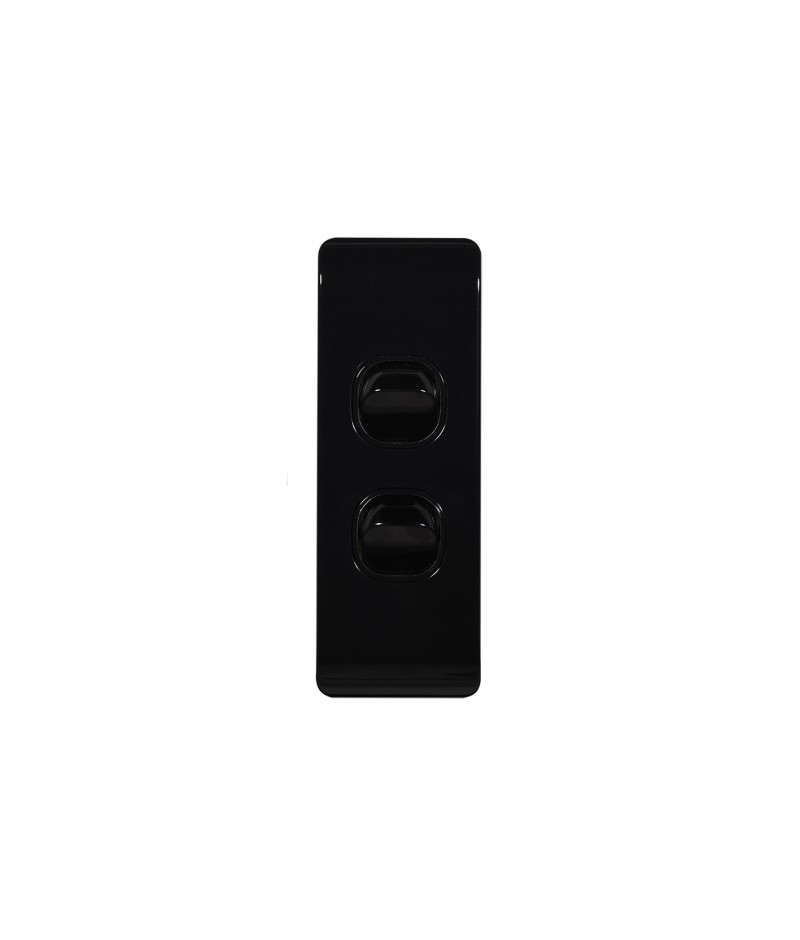

Switch Architrave 2 Gang 16AX 20A 250V Leopard Black Trader
Trader architrave switch features vertical 2 gang layout, 16AX 20A 250V rating and black finish. Ideal for door frames and narrow wall spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Vertical Architrave Switch, 2 Gang Switch, Leopard Architrave Switch
Technical Specifications
- Number of rockers: 2
- Rated current: 16AX / 20 A
- Voltage: 250 V~
- Material: UV-stabilised polycarbonate
- Terminal capacity: up to 4 × 1.5 mm² per terminal
- Two‑way switching with looping terminal
- Mounting orientation: vertical

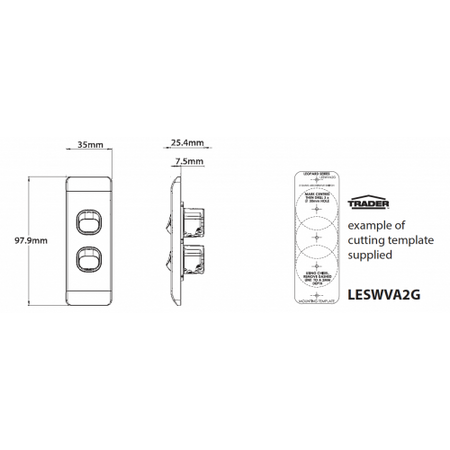

- Dimensions (H x L x W): 97.9mm x 35mm x 25.4mm
- Weight: 0.1 kg
Key Features
- Slim vertical design ideal for architrave or door‑frame mounting
- Brass tunnel terminals with screws backed out for easier cabling
- UV‑stabilised polycarbonate resists discolouring
- Approved to AS/NZS 60669‑1
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure safe compliance with AS/NZS 3000.
Applications
- Residential installations where space is limited, e.g. door frames
- Commercial installations in tight or decorative spaces
Standards & Compliance
- AS/NZS 60669‑1
Environmental Benefits
- UV‑stabilised polycarbonate delivers durability, reducing replacement frequency and material waste
Warranty Information
Manufacturer general warranty not located online; please contact Trader or authorised distributor for details.
Available Now
Available through authorised Australian electrical distributors and wholesalers.
