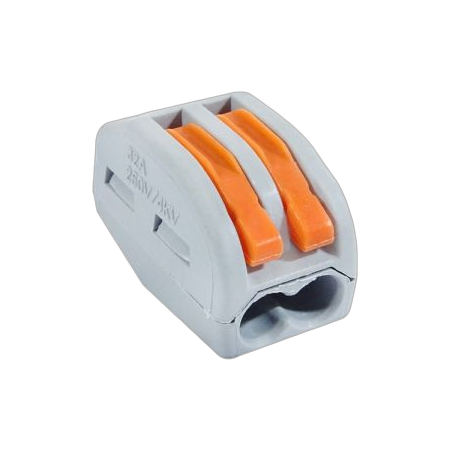

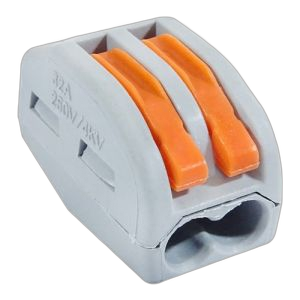

Terminal Block 2 Way 6 Pack MajorTech
MajorTech terminal block features a 2 way lever design and 6 pack. Ideal for quick cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETI PCT Connector Block, 2-Pole Splicing Connector, 2-Way Lever Wire Connector, Quick Cable Joiner
Technical Specifications
- Product Type: 2-pole splicing connector block
- Pack Quantity: 6 pieces
- Rated Voltage: 450V AC
- Rated Current: 32A
- Voltage Resistance: 4kV
- Compatible Conductors: Stranded 0.4–2.5mm²; solid core 0.5–4mm²
- Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless lever clamp
- Material: Polycarbonate housing with copper conductor components
- Standard Reference: IEC
- Dimensions (H x L x W): 14.5mm x 21.2mm x 12.5mm
- Weight: 0.1 kg
Key Features
- Two-way lever design for joining two conductors
- Tool-free cable insertion and release
- Reusable connection mechanism
- Suitable for stranded and solid-core conductors within the specified range
- Integrated test access point for voltage checking
- Compact format for general wiring and modular installations
- Supplied as six individual connector blocks
Professional Installation Requirements
- Electrical wiring work should be carried out by a licensed electrician in accordance with applicable Australian electrical safety requirements and AS/NZS 3000. Isolate the circuit before installation and do not exceed the stated voltage, current or conductor-size ratings.
Applications
- General electrical wiring and cable joining
- Lighting and modular electrical installations
- Junction-box and enclosure wiring
- Residential, commercial and light industrial wiring repairs
- Low-voltage circuit termination and splicing
Standards & Compliance
- AS/NZS IEC 60998.1:2012 — applicable connecting-device standard for low-voltage household and similar applications; verify product certification for the intended installation
- AS/NZS 3000:2018 — wiring rules applicable to installation in Australian electrical systems
Environmental Benefits
- Reusable lever mechanism can reduce waste compared with single-use crimp connectors
- Durable housing and copper conductor components support long service life and reduce replacement frequency
- Plastic and copper components may be recyclable through appropriate material-recovery channels at end of life
Warranty Information
Major Tech lists VETI 1 products with a 5-year warranty, subject to the manufacturer’s warranty terms, registration requirements where applicable, proof of purchase and exclusions for incorrect use, damage or unauthorised modification.
Available Now
Available through MajorTech and authorised electrical distributors in Australia, subject to distributor stock.
