Terminal Block 3 Way 6 Pack MajorTech

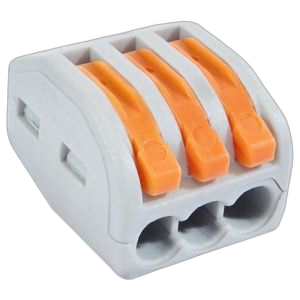

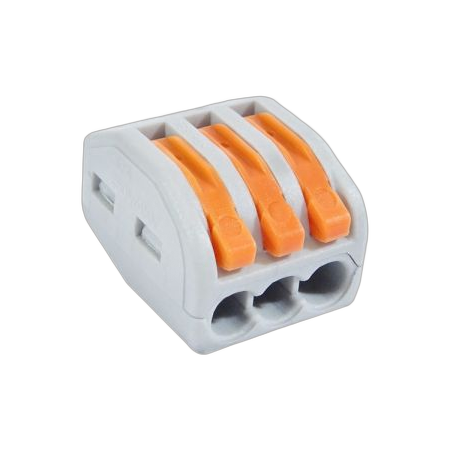

MajorTech terminal block features a 3 way lever design and 6 pack. Ideal for quick cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PCT-213P6 Connector Block, 3-Pole Splicing Connector, 3-Way Lever Wire Connector
Technical Specifications
- Model: PCT-213P6
- Pack Quantity: 6 terminal blocks
- Configuration: 3 pole / 3 way
- Rated Voltage: 450V
- Rated Current: 32A
- Voltage Resistance: 4kV
- Wire Range: Stranded 0.4–2.5mm²; solid core 0.5–4mm²
- Strip Length: 11–12mm
- Ambient Temperature: -40°C to +105°C
- Connection Type: Screwless lever clamp
- Standard Reference: IEC standard connector block range
- Dimensions (H x L x W): 14.5mm x 21.2mm x 17.1mm
- Weight: 0.1 kg
Key Features
- Three-way lever design for joining up to three conductors
- Reusable connection with easy lever release
- Quick cable joining without screws or specialist tools
- Compact format for general wiring, lighting and equipment connections
- Six individual connector blocks supplied
- Suitable for compatible solid-core and stranded conductors
- Integrated voltage-testing access point
Professional Installation Requirements
- Installation in mains-voltage wiring should be performed by a licensed electrical worker in accordance with AS/NZS 3000 and the connector manufacturer's instructions. Isolate the circuit before installation or maintenance.
Applications
- General electrical wiring
- Lighting and luminaire connections
- Cable joining inside junction boxes and enclosures
- Control and equipment wiring
- Residential, commercial and light industrial electrical work
Standards & Compliance
- AS/NZS 3000:2018, where used as part of an Australian electrical installation
- AS/NZS IEC 60947.7.1:2015 is the relevant Australian/New Zealand terminal-block standard category; specific product certification was not verified
Environmental Benefits
- Reusable lever construction can extend service life and reduce replacement waste
- Compact cable joining can help reduce wiring offcuts and installation material use
Warranty Information
Major Tech lists a 5-year warranty for VETi 1 products under its published warranty policy. Regional warranty conditions, registration requirements and proof-of-purchase provisions may apply.
Available Now
Available through MajorTech and authorised electrical distributors, subject to distributor stock levels.
