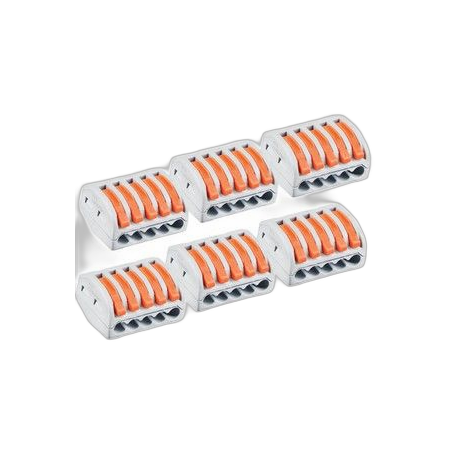

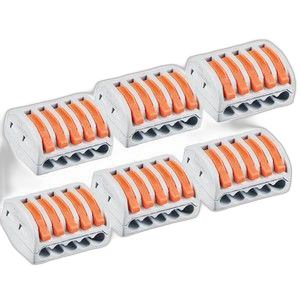

Terminal Block 5 Way 50 Pack MajorTech
MajorTech terminal block features a 5 way lever design and 50 pack. Ideal for quick cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 5-Way Lever Connector Block, 5-Pole Terminal Block, Quick Wire Connector, Lever Wire Connector
Technical Specifications
- Pack Quantity: 50 connector blocks
- Pole Configuration: 5 poles
- Connection Type: Screwless lever clamp
- Application: Splicing and linking conductors
- Rated Voltage: 450V
- Rated Current: 32A
- Voltage Resistance: 4kV
- Stranded Conductor Range: 0.4–2.5mm²
- Solid Conductor Range: 0.5–4mm²
- Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Housing Material: Polycarbonate, UL94 V-2
- Conductor Material: T2 copper
- Spring Material: S301 stainless steel
- Standard Reference: IEC standard
- Dimensions (H x L x W): 14.5mm x 21.2mm x 26.4mm
- Weight: 0.405 kg
Key Features
- Five independent connection poles for multi-conductor joining
- Screwless lever design enables quick installation and release
- Suitable for stranded conductors from 0.4–2.5mm²
- Suitable for solid-core conductors from 0.5–4mm²
- 450V rated voltage and 32A rated current
- 4kV voltage resistance
- Compact design for use inside junction boxes and enclosures
- Supplied in a 50-piece bottle pack
Professional Installation Requirements
- Electrical installation and connection to mains wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local requirements. Isolate the circuit before installation and verify that the connector is suitable for the conductor type, cross-sectional area and installation conditions.
Applications
- Joining and extending electrical conductors
- Residential wiring and general electrical maintenance
- Commercial and industrial wiring installations
- Junction box and enclosure connections
- Lighting, control and low-voltage power wiring
Standards & Compliance
- AS/NZS 3000:2018 — applicable installation requirements for electrical connections and wiring systems
- AS/NZS IEC 60998.2.2:2012 — relevant connecting-device standard for screwless-type terminals, subject to product certification and application suitability
Environmental Benefits
- Reusable lever mechanism can support maintenance and reconnection without replacing the complete connector
- Compact connector design reduces material use compared with larger terminal assemblies
- Copper conductor components and metal spring parts are recyclable at end of life where suitable recycling facilities are available
Warranty Information
Major Tech standard product warranty: 6 months from purchase or delivery, whichever is later, subject to the manufacturer's warranty conditions and exclusions.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock.
