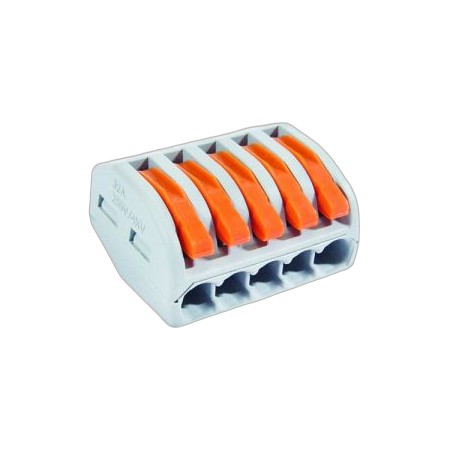

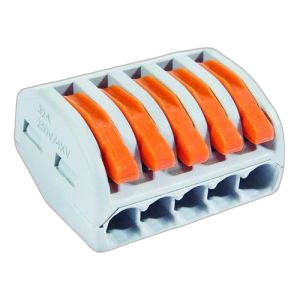

Terminal Block 5 Way 6 Pack MajorTech
MajorTech terminal block features a 5 way lever design and 6 pack. Ideal for quick cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi PCT-215P6 Connector Block, 5-Way Terminal Block, Lever Connector Block, Splicing Connector
Technical Specifications
- Product Type: 5-pole splicing terminal connector block
- Pack Quantity: 6 pieces
- Rated Voltage: 450V
- Rated Current: 32A
- Voltage Resistance: 4kV
- Compatible Conductors - Stranded: 0.4-2.5mm²
- Compatible Conductors - Solid Core: 0.5-4mm²
- Wire Strip Length: 11-12mm
- Operating Temperature: -40°C to +105°C
- Standard Reference: IEC standard
- Dimensions (H x L x W): 14.5mm x 26.4mm x 21.2mm
- Weight: 0.1 kg
Key Features
- Five-way terminal configuration for multiple cable connections
- Supplied as a six-piece pack
- Compact splicing design for general wiring and termination
- Suitable for stranded and solid-core conductors
- Voltage testing point incorporated into the connector design
- Tool-free connection format for efficient cable joining
- Designed for use with copper conductors within the specified conductor range
Professional Installation Requirements
- For fixed or mains-voltage wiring, installation should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the product ratings. Isolate the circuit before installation and verify conductor compatibility, stripping length and secure connection.
Applications
- General electrical wiring termination
- Lighting and switch wiring
- Junction and cable-splicing applications
- Residential and light-commercial wiring projects
- Connecting copper conductors in equipment and accessories
Standards & Compliance
- AS/NZS IEC 60947.7.1:2015 is the applicable Australian/New Zealand standard for terminal blocks for copper conductors; the manufacturer datasheet states IEC standard compliance but does not publish a specific AS/NZS certification for this model.
Environmental Benefits
- Reusable connector format can reduce replacement and wiring waste compared with single-use joining methods
- Compact construction helps reduce material use and packaging volume per connection
- Durable operating-temperature range may support longer service life and fewer replacement components
Warranty Information
VETi 1 products are listed with a 5-year warranty by Major Tech, subject to the manufacturer’s registration requirements, exclusions and warranty policy. Proof of purchase may be required.
Available Now
Available through MajorTech, VETi and authorised Australian electrical distributors, subject to distributor stock levels.
