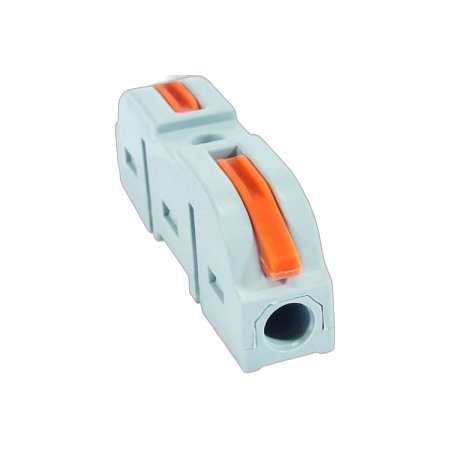

Terminal Block Inline 1 Pole 6 Pack MajorTech
MajorTech terminal block features an inline 1 pole design supplied in a 6 piece pack. Ideal for joining and terminating electrical cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi LT-211P6 Interjoining Connector Block, Inline Connector Block, Screwless Terminal Block, Electrical Cable Joining Connector
Technical Specifications
- Product Type: Inline 1-pole terminal block
- Pack Quantity: 6 pieces
- Rated Voltage: 450V
- Rated Current: 32A
- Voltage Resistance: 4kV
- Conductor Range, Stranded: 0.4–2.5mm²
- Conductor Range, Solid Core: 0.5–4mm²
- Wire Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless spring-clamp connection
- Joining Feature: Sliding points for joining multiple connector blocks
- Manufacturer Standard: IEC standard stated by MajorTech
- Dimensions (H x L x W): 13.05mm x 39.3mm x 14.3mm
- Weight: 0.1 kg
Key Features
- Inline single-pole design for joining and terminating electrical cable
- Six connector blocks supplied in one pack
- Screwless connection design for faster installation
- Sliding side points allow multiple blocks to be joined together
- Suitable for stranded and solid-core conductors
- Rated to 450V and 32A
- 4kV voltage resistance
- Compact design for electrical wiring applications
Professional Installation Requirements
- Installation on mains-voltage or fixed wiring should be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000 where applicable. Isolate and verify the circuit is de-energised before installation.
Applications
- Joining electrical cable conductors
- Terminating wires in electrical installations
- Lighting and power wiring connections
- Electrical control panels and enclosures
- HVAC, appliance and general wiring repairs
- Creating expanded connection groups by joining multiple blocks
Standards & Compliance
- AS/NZS IEC 60947.7.1:2015 is the applicable Australian/New Zealand standard for terminal blocks for copper conductors; the manufacturer datasheet states IEC standard compliance, but specific Australian certification for this SKU was not verified. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-iec-60947-7-1-2015-111070_saig_as_as_232359/))
- Installation in Australian fixed wiring systems should follow AS/NZS 3000 where applicable.
Environmental Benefits
- Compact reusable connector design can support repair and maintenance rather than complete cable replacement
- Extended operating temperature range may support longer service life in suitable applications
- The metal conductor-contact components and polymer housing should be separated and recycled through appropriate electrical-waste or materials-recycling channels where facilities accept them
Warranty Information
MajorTech’s Australian policy states that Major Tech products carry a warranty from the date of purchase or delivery, whichever is latest, subject to the policy conditions and proof of purchase. No product-specific extended warranty for this VETi connector block was listed. ([majortech.com.au](https://majortech.com.au/uploads/Warranties_and_Returns_Policy_Australia.pdf))
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock.
