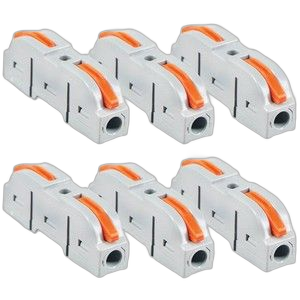

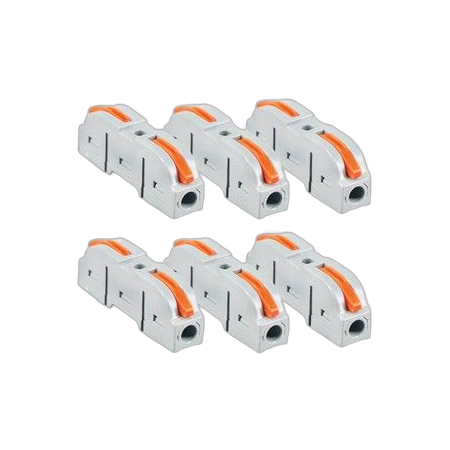

Terminal Block Inline 1 Pole 60 Pack MajorTech
MajorTech terminal block features an inline 1 pole design supplied in a 60 piece pack. Ideal for joining and terminating electrical cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MajorTech LT-211B Connector Blocks, Inline Connector Blocks, Interjoining Connector Blocks, Quick Wire Terminal Blocks
Technical Specifications
- Pole Configuration: 1 pole
- Pack Quantity: 60 pieces
- Rated Voltage: 450 V
- Rated Current: 32 A
- Voltage Resistance: 4 kV
- Wire Range, Stranded: 0.4–2.5 mm²
- Wire Range, Solid Core: 0.5–4 mm²
- Strip Length: 11–12 mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless lever connection
- Joining Function: Sliding side joiners for interjoining multiple blocks
- Standard Reference: IEC terminal block standard
- Dimensions (H x L x W): 15mm x 39mm x 8.5mm
- Weight: 0.3 kg
Key Features
- Inline single-conductor connection design
- Supplied in a 60-piece bottle pack
- Screwless connection for quick cable joining and termination
- Sliding side joiners allow multiple blocks to be linked into larger groups
- Suitable for stranded and solid-core conductors
- Compact grey connector housing
- Designed for low-voltage electrical installation work
Professional Installation Requirements
- Installation and connection to fixed electrical wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical regulations. Isolate the circuit before installation and verify conductor compatibility and tightening or clamping requirements.
Applications
- Joining electrical cable conductors
- Inline cable termination
- Lighting and general low-voltage wiring
- Electrical maintenance and repair work
- Building services and control wiring
- Workshop and field electrical installations
Standards & Compliance
- AS/NZS IEC 60947.7.1:2015 – relevant terminal block standard for copper-conductor terminal blocks, where applicable to the installation and product certification
- AS/NZS 3000:2018 – electrical installation and wiring requirements
Environmental Benefits
- Reusable connector format can reduce wiring waste compared with repeated replacement of complete cable sections
- Durable housing and connection mechanism can extend service life and reduce replacement frequency
- Compact packaging and small component format reduce material use during transport and storage
Warranty Information
Major Tech standard product warranty: 6 months from purchase or delivery, whichever is later, subject to proof of purchase and the manufacturer's exclusions for incorrect use, negligence, unauthorised alterations and other excluded damage.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
