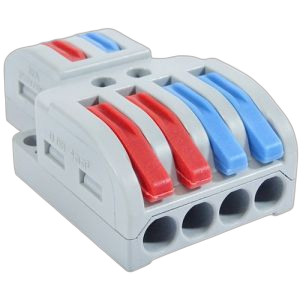

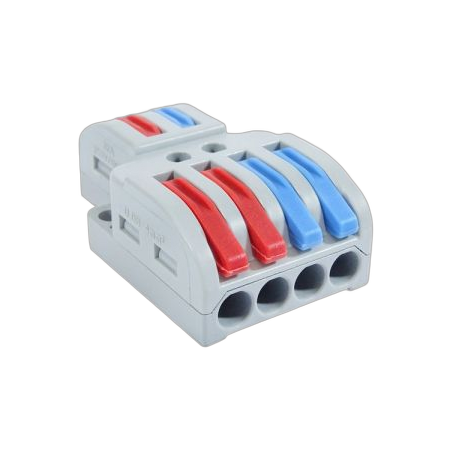

Terminal Block Inline 2 Pole 2 Way 6 Pack MajorTech
MajorTech terminal block features an inline 2 pole design with 2 way outputs in a 6 piece pack. Ideal for joining and terminating cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi LT-422P6 Splitter Connector, 2-Pole Terminal Block, 2x2P In-Line Splice Connector
Technical Specifications
- Part Number: LT-422P6
- Pack Quantity: 6 connector blocks
- Configuration: 2-pole splitter connector; manufacturer range designation 4-pole terminal block
- Rated Voltage: 450 V
- Rated Current: 32 A
- Voltage Resistance: 4 kV
- Conductor Size, Stranded: 0.4–2.5 mm²
- Conductor Size, Solid Core: 0.5–4 mm²
- Strip Length: 11–12 mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless clamp with quick-release levers
- Standard Reference: IEC standard; applicable Australian terminal-block standard is AS/NZS IEC 60947.7.1:2015
- Dimensions (H x L x W): 14.43mm x 39.3mm x 23.3mm
- Weight: 0.1 kg
Key Features
- 2-pole splitter connector design for distributing conductors
- Six connector blocks supplied in the pack
- Screwless connection enables quick installation and release
- Rated for applications up to 450 V and 32 A
- Accepts stranded and solid-core conductors
- Integrated test points support voltage checking
- Suitable for modular switches, sockets and general electrical wiring
Professional Installation Requirements
- Installation on mains-voltage circuits should be carried out by a licensed electrician in accordance with applicable Australian wiring regulations, including AS/NZS 3000. Isolate and verify the circuit before installation.
Applications
- Joining and terminating electrical cable
- Splitting conductors in modular switch and socket installations
- Residential and commercial electrical wiring
- Lighting, power outlet and distribution connections
- Electrical maintenance and repair work
Standards & Compliance
- AS/NZS IEC 60947.7.1:2015 is the applicable Australian/New Zealand standard for terminal blocks for copper conductors; the manufacturer datasheet states IEC standard compliance but does not publish a specific AS/NZS certification claim for LT-422P6.
- Electrical installation use should follow AS/NZS 3000 requirements.
Environmental Benefits
- Reusable screwless quick-release design can reduce replacement and disposal of damaged connector blocks.
- Compact construction reduces material use and packaging volume compared with larger terminal assemblies.
- Durable operating-temperature range may support longer service life and reduce replacement waste.
Warranty Information
Major Tech’s Australian warranty policy provides a standard product warranty for Major Tech products, subject to the applicable policy conditions, correct use and proof of purchase. No separate extended warranty for this VETi 1 connector block was identified.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
