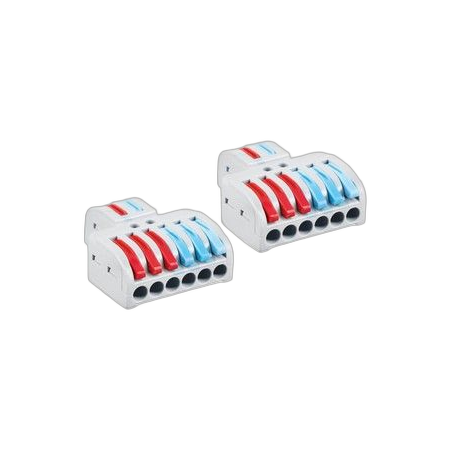

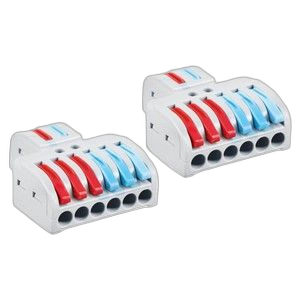

Terminal Block Inline 2 Pole 20 Pack MajorTech
MajorTech terminal block features an inline 2 pole design supplied in a 20 piece pack. Ideal for joining and terminating electrical cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2-Pole Splitter Connector Block, Inline Terminal Block, Electrical Cable Splitter, VETi 3 LT-623B
Technical Specifications
- Product Type: 2-pole splitter connector block
- Pack Quantity: 20 pieces
- Rated Current: 32A
- Rated Voltage: 450V
- Voltage Resistance: 4kV
- Conductor Capacity: 0.5–4mm² solid core; 0.4–2.5mm² stranded conductor
- Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Connection Design: Screwless connection for parallel conductor distribution
- Manufacturer Approval: IEC standard approved
- Connection Points: Four conductors connected in parallel
- Dimensions (H x L x W): 14.3mm x 39.3mm x 33.3mm
- Weight: 0.298 kg
Key Features
- 2-pole splitter design for branching circuits or distributing power to multiple points
- Supplied as a 20-piece pack
- Supports conductors up to 4mm² solid core and 2.5mm² stranded
- 32A and 450V electrical rating
- 4kV voltage resistance
- Screwless connection design for quick installation
- Compact form factor suitable for lighting, switch and socket wiring applications
Professional Installation Requirements
- Installation on mains-voltage electrical circuits should be performed by a licensed electrician in accordance with AS/NZS 3000:2018 and applicable local electrical regulations. Follow the specified conductor size, strip length and product ratings.
Applications
- Joining and terminating electrical cable
- Branching lighting and power circuits
- Distributing power to multiple connection points
- Wiring switch and socket assemblies
- Electrical installation and maintenance work
Standards & Compliance
- AS/NZS 3000:2018 — applicable to the selection and installation of terminal and connector blocks within Australian electrical installations; product-specific Australian certification should be confirmed before use.
Environmental Benefits
- Supports repair, reconfiguration and reuse of electrical wiring, which can reduce replacement waste
- Compact reusable component design reduces material use compared with replacing larger wiring assemblies
- Extended service life can reduce the frequency of component replacement
Warranty Information
Major Tech’s Australian warranty policy lists a 15-year extended warranty for VETi 3 products, subject to the policy conditions, proof of purchase and correct installation and use. ([majortech.com.au](https://majortech.com.au/uploads/Warranties_and_Returns_Policy_Australia.pdf))
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock.
