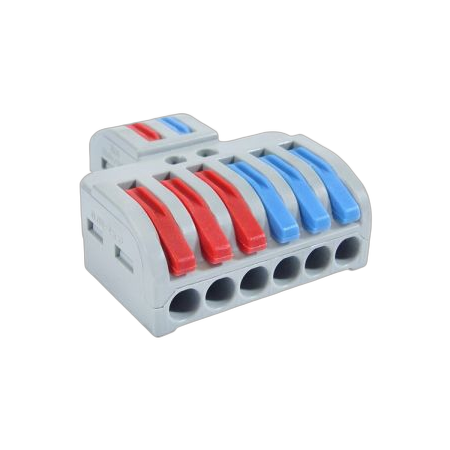

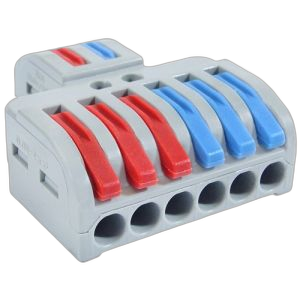

Terminal Block Inline 2 Pole 3 Way 2 Pack MajorTech
MajorTech terminal block features an inline 2 pole design with 3 way outputs in a 2 piece pack. Ideal for joining and terminating cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2-Pole Splitter Connector Block, Inline Terminal Block, 6-Way Terminal Block, LT-623P2
Technical Specifications
- Configuration: Inline 2-pole splitter with three outputs per pole
- Pack Quantity: 2 connector blocks
- Rated Voltage: 450 V
- Rated Current: 32 A
- Standard: IEC standard
- Voltage Resistance: 4 kV
- Suitable Wire Range: Stranded 0.4–2.5 mm²; solid core 0.5–4 mm²
- Strip Length: 11–12 mm
- Operating Temperature: -40°C to +105°C
- Product Code: LT-623P2
- Dimensions (H x L x W): 14.43mm x 33.3mm x 39.3mm
- Weight: 0.1 kg
Key Features
- Two independent poles for live and neutral cable distribution
- One input and three outputs per pole
- Suitable for joining, branching and terminating electrical cable
- Compact inline design for use inside wall boxes and electrical enclosures
- Integrated voltage test points
- Supplied in a two-piece pack
Professional Installation Requirements
- Mains electrical installation should be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Isolate power before installation and verify all connections before energising.
Applications
- Joining and terminating electrical cable
- Branching live and neutral conductors
- Lighting and switch connection wiring
- Modular switch and socket installations
- Wall box and electrical enclosure wiring
Environmental Benefits
- Durable reusable component that can reduce waste from repeated replacement of basic cable joints
- Metal conductor components and thermoplastic housing may be recoverable through appropriate electrical waste recycling streams at end of service life
Warranty Information
Major Tech standard product warranty: 6 months from purchase or delivery, whichever is later, against manufacturing defects, subject to the manufacturer’s warranty terms and exclusions.
Available Now
Available through Major Tech and authorised Australian electrical distributors, subject to distributor stock.
