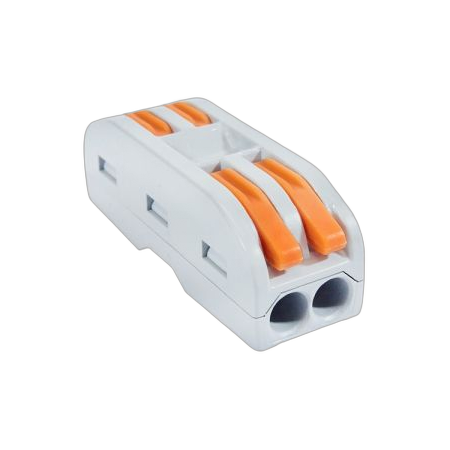

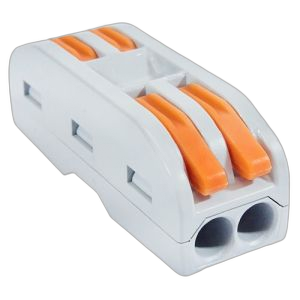

Terminal Block Inline 2 Pole 6 Pack MajorTech
MajorTech terminal block features an inline 2 pole design and 6 pack. Ideal for cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi PCT-222P6, 2-Pole Inline Connector Block, 2-Way Lever Connector, Inline Cable Joiner
Technical Specifications
- Product Type: Inline/interjoining connector block
- Pole Configuration: 2 pole
- Pack Quantity: 6 pieces
- Rated Current: 32A
- Rated Voltage: 450V
- Voltage Resistance: 4kV
- Compatible Stranded Conductor: 0.4–2.5mm²
- Compatible Solid-Core Conductor: 0.5–4mm²
- Required Strip Length: 11–12mm
- Ambient Temperature Range: -40°C to +105°C
- Connection Method: Screwless lever-operated clamping
- Manufacturer Standard Reference: IEC standard
- Dimensions (H x L x W): 14.3mm x 39.3mm x 13.05mm
- Weight: 0.1 kg
Key Features
- Two-pole inline design for joining two conductors
- Six connector blocks supplied per pack
- Tool-free lever-operated connection
- Suitable for solid-core and stranded conductors
- Supports conductor sizes from 0.4mm² to 4mm² depending on conductor type
- Compact housing for use in junction boxes and electrical enclosures
- Reusable connection mechanism for inspection or re-termination
Professional Installation Requirements
- Installation in mains-voltage wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical regulations. Confirm conductor size, current rating and enclosure requirements before use.
Applications
- General electrical wiring
- Cable joining and inline splicing
- Lighting and power circuit connections
- Junction boxes and electrical enclosures
- Domestic, commercial and light-industrial wiring installations
Standards & Compliance
- AS/NZS 3000:2018 — installation and wiring requirements applicable when used in Australian electrical installations
Environmental Benefits
- Reusable lever-operated design can reduce replacement waste during inspection or re-termination
- Compact construction reduces material use compared with larger terminal enclosures
- Plastic and conductive metal components may be recyclable through appropriate material-recovery streams
Warranty Information
Major Tech standard product warranty: 6 months from purchase or delivery, subject to proof of purchase and exclusions for incorrect application, misuse, unauthorised alteration, electrical surges and normal wear. No specific extended warranty was identified for this connector block.
Available Now
Available through MajorTech, VETi and authorised Australian electrical distributors, subject to distributor stock levels.
