Trade Discount 25%

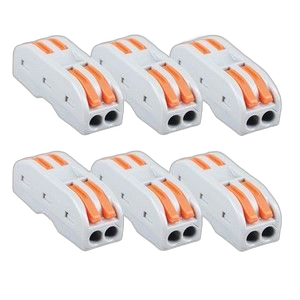

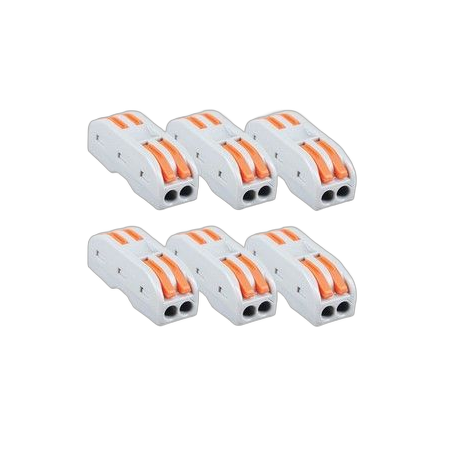

Terminal Block Inline 2 Pole Splicing 40 Pack MajorTech
MajorTech terminal block features an inline 2 pole splicing design and 40 pack. Ideal for cable splicing and joining in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi PCT-222B, 2-Pole Interjoining Connector Block, Inline Terminal Block, Screwless Cable Connector
Technical Specifications
- Part Number: PCT-222B
- Connector Type: Inline interjoining connector block
- Number of Poles: 2
- Pack Quantity: 40 pieces
- Rated Voltage: 450 V
- Rated Current: 32 A
- Voltage Resistance: 4 kV
- Compatible Stranded Wire: 0.4–2.5 mm²
- Compatible Solid-Core Wire: 0.5–4 mm²
- Strip Length: 11–12 mm
- Ambient Temperature Range: -40°C to +105°C
- Standard Reference: IEC
- Housing Colour: Grey
- Dimensions (H x L x W): 13.05mm x 39.3mm x 14.3mm
- Weight: 0.32 kg
Key Features
- Screwless inline connection design
- Two-pole configuration for cable joining and splicing
- Sliding connection points allow easy joining and multiple connections
- Tool-free push-in and clip-closing installation method
- Suitable for compact installations in junction boxes, switchboards and general wiring applications
- Supplied in a convenient 40-piece bottle pack
Professional Installation Requirements
- Connection to mains or fixed electrical wiring should be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations.
Applications
- General electrical wiring splicing
- Inline cable joining and extension
- Lighting circuit wiring
- Residential and commercial electrical installations
- Control wiring and equipment connections
- Junction boxes and switchboards
Standards & Compliance
- AS/NZS 3000:2018 – applicable wiring and installation requirements for use in Australian electrical installations; product-specific AS/NZS certification is not stated by the manufacturer.
Environmental Benefits
- Compact, durable construction can reduce replacement frequency and associated waste
- Reusable clip-style connection design can support maintenance and wiring modifications without replacing the entire connector
- Metal conductive components can be recovered through appropriate electrical hardware recycling at end of life
Warranty Information
Covered by Major Tech’s standard product warranty from the date of purchase or delivery, whichever is later, subject to the manufacturer’s warranty and returns policy. The Australian policy does not specify a separate warranty duration for this connector block.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
