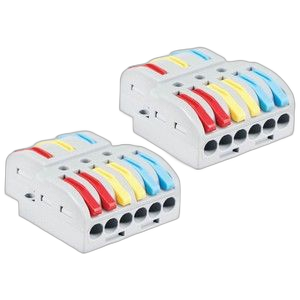

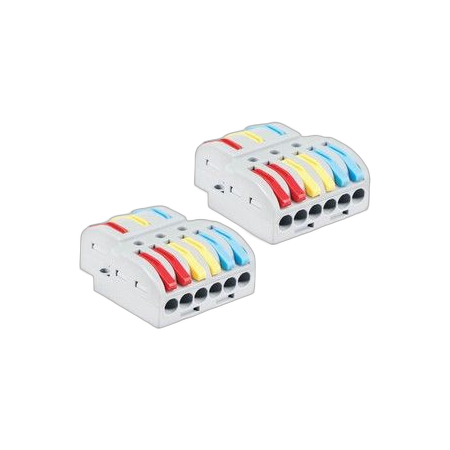

Terminal Block Inline 3 Pole 15 Pack MajorTech
MajorTech terminal block features an inline 3 pole design and 15 pack. Ideal for cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LT-633B 3-Pole Splitter Blocks, VETI Splitter Connector Blocks, Multi-Wire Distribution Blocks
Technical Specifications
- Model: LT-633B
- Pack Quantity: 15 connector blocks
- Application: Parallel power and cable distribution
- Pole Configuration: 3-pole splitter
- Connection Points: Up to 4 conductors per pole
- Rated Current: 32A
- Rated Voltage: 450V
- Voltage Resistance: 4kV
- Compatible Conductor Range: Stranded 0.4–2.5mm²; solid core 0.5–4mm²
- Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless lever clamp
- Standard Claim: IEC standard approved
- Dimensions (H x L x W): 14.3mm x 39.3mm x 33.3mm
- Weight: 0.269 kg
Key Features
- Three-pole parallel splitter configuration
- Each pole accommodates up to four conductors
- Tool-free lever-operated connection mechanism
- Rated for up to 32A and 450V
- 4kV voltage resistance rating
- Colour-coded levers for circuit or phase identification
- Supplied in a 15-piece bottle pack
- Suitable for branching circuits and multi-wire distribution
Professional Installation Requirements
- Mains-voltage installation should be performed by a licensed electrician in accordance with AS/NZS 3000:2018, including conductor preparation, enclosure requirements and circuit protection. Confirm that the application does not exceed the connector's 32A and 450V ratings.
Applications
- General electrical wiring
- Lighting circuit branching
- Switchboard and control-panel wiring
- Junction boxes and distribution enclosures
- Cable joining and termination
- Power distribution to multiple connection points
Standards & Compliance
- AS/NZS 3000:2018 – electrical installation and wiring requirements applicable to the use and installation of terminal and connector blocks
Environmental Benefits
- Reusable lever-operated connection design can reduce replacement and disposal of single-use connectors during maintenance
- Compact multi-wire distribution can reduce material use and enclosure space compared with multiple separate connection points
- Durable operating-temperature range may support longer service life and reduce replacement waste
Warranty Information
Major Tech's Australian warranty policy provides a standard product warranty against manufacturing defects from the date of purchase or delivery, subject to proof of purchase and exclusions for incorrect use, abuse, normal wear, electrical surges, unauthorised alterations and inadequate care. The published extended 15-year VETI 3 warranty should be confirmed with the distributor for this connector-block SKU.
Available Now
Available through Major Tech and authorised Australian electrical distributors.
