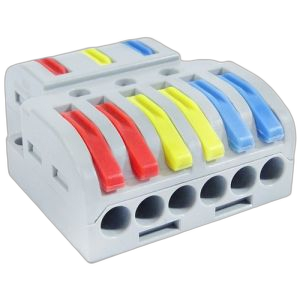

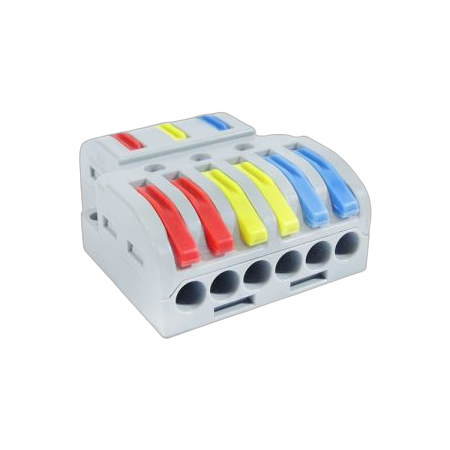

Terminal Block Inline 3 Pole 2 Way Out 2 Pack MajorTech
MajorTech terminal block features an inline 3 pole design, 2 way output per terminal and 2 pack. Ideal for cable joining in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3-Pole Splitter Connector Block, Inline Terminal Block, LT-633P2 Connector Block
Technical Specifications
- Part Number: LT-633P2
- Configuration: 3-pole splitter terminal block with two-way output per terminal
- Rated Voltage: 450V
- Rated Current: 32A
- Voltage Resistance: 4kV
- Applicable Standard: IEC standard
- Conductor Size: Stranded 0.4–2.5mm²; solid core 0.5–4mm²
- Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Housing Material: Polycarbonate, UL94 V-2
- Conductor Material: T2 copper
- Pack Quantity: 2 pieces
- Dimensions (H x L x W): 14.3mm x 39.3mm x 33.3mm
- Weight: 0.1 kg
Key Features
- Inline 3-pole configuration for joining and branching conductors
- Two-way output per terminal for general wiring applications
- Screwless lever-operated connection design
- Suitable for stranded and solid-core conductors
- 450V and 32A electrical rating
- Compact design with voltage-testing access points
- Quick-release connection method for efficient installation
Professional Installation Requirements
- Connection to mains or fixed electrical wiring should be carried out by a licensed electrician in accordance with the manufacturer's instructions and applicable electrical installation requirements.
Applications
- General electrical wiring connections
- Branching and joining conductors in lighting circuits
- Residential and commercial switch and socket wiring
- Modular switchboard and electrical accessory installations
- Low-voltage distribution and cable termination
Standards & Compliance
- AS/NZS 3000:2018 Electrical Installations — Wiring Rules applies to the selection and installation of terminal blocks in Australian and New Zealand electrical installations; the manufacturer lists this product range to an IEC standard rather than claiming specific AS/NZS product certification. ([nsw.gov.au](https://www.nsw.gov.au/housing-and-construction/compliance-and-regulation/electricians/electrical-standards-rules-and-notes?utm_source=openai))
Environmental Benefits
- Durable polycarbonate housing can support extended service life and reduce replacement waste
- Copper conductors are recyclable at end of service life
- Reusable screwless connections can reduce wiring rework and associated material waste
Warranty Information
Major Tech's published warranty schedule lists VETi 1 products with a 5-year warranty; confirm the applicable Australian warranty terms with the authorised distributor. ([major-tech.com](https://www.major-tech.com/shipping-returns?utm_source=openai))
Available Now
Available through Major Tech and authorised Australian electrical distributors, subject to distributor stock.
