Trade Discount 25%

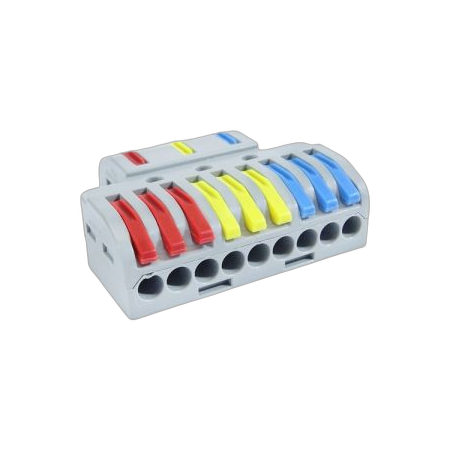

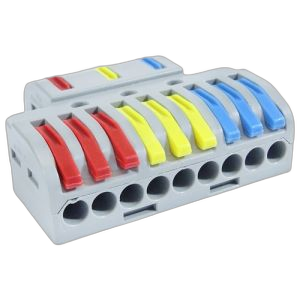

Terminal Block Inline 3 Pole 3 Way Out 2 Pack MajorTech
MajorTech terminal block features an inline 3 pole design, 3 way output per terminal and 2 pack. Ideal for cable joining in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3-Pole Splitter Connector, Inline Terminal Block, 3-Way Connector Block, Cable Joining Block
Technical Specifications
- Product Type: 3-pole splitter connector block
- Connection Layout: One input with three parallel output points
- Pack Quantity: 2 connector blocks
- Rated Voltage: 450V
- Rated Current: 32A
- Voltage Resistance: 4kV
- Compatible Conductor Size: Stranded 0.4–2.5mm²; solid core 0.5–4mm²
- Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Connection Method: Screwless push-in connection
- Manufacturer Standard: IEC standard approved
- Dimensions (H x L x W): 14.3mm x 48.3mm x 39.3mm
- Weight: 0.1 kg
Key Features
- Three-way parallel cable distribution from a single input
- Inline 3-pole design for general wiring and cable joining
- Screwless connection method for quick installation
- Suitable for stranded and solid-core conductors within the specified size range
- 450V rated voltage and 32A rated current
- Compact design with integrated voltage-test points
- Supplied as a two-pack according to the product listing
Professional Installation Requirements
- Installation on mains-voltage wiring should be performed by a licensed electrician in accordance with AS/NZS 3000:2018 and applicable state or territory electrical regulations.
Applications
- General electrical wiring
- Cable joining and branching
- Parallel distribution to multiple lighting or power points
- Switch and socket wiring within suitable enclosures
- VETi 1 wall-box and modular wiring applications
Standards & Compliance
- AS/NZS 3000:2018 – relevant wiring and installation requirements for electrical installations
- AS/NZS IEC 60947.7.1:2015 – relevant terminal-block product standard; the manufacturer states IEC standard approval, but specific AS/NZS certification for this SKU is not published
Environmental Benefits
- Compact connector design uses limited material while providing multiple cable connection points
- Durable construction can reduce replacement frequency and associated installation waste
- Suitable for repair and modification work, potentially extending the service life of existing wiring installations
Warranty Information
Major Tech’s Australian standard product warranty applies from the date of purchase or delivery, whichever is later. The Australian policy does not publish a specific warranty duration for this connector block; exclusions include incorrect use, abuse, unauthorised alterations, electrical surges and inadequate care.
Available Now
Available through MajorTech and authorised electrical distributors, subject to distributor stock levels.
