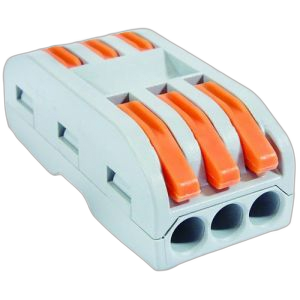

Terminal Block Inline 3 Pole 6 Pack MajorTech
MajorTech terminal block features an inline 3 pole design and 6 pack. Ideal for cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3-Pole Interjoining Connector Block, Inline Wire Connector, Screwless Terminal Block, Cable Joining Connector
Technical Specifications
- Product Type: Inline/interjoining connector block
- Number of Poles: 3
- Pack Quantity: 6 pieces
- Rated Voltage: 450 V
- Rated Current: 32 A
- Voltage Resistance: 4 kV
- Compatible Solid-Core Conductor: 0.5–4 mm²
- Compatible Stranded Conductor: 0.4–2.5 mm²
- Strip Length: 11–12 mm
- Ambient Temperature: -40°C to +105°C
- Connection Method: Screwless spring clamp
- Manufacturer Standard Listing: IEC standard
- Dimensions (H x L x W): 14.3mm x 39.3mm x 18.2mm
- Weight: 0.1 kg
Key Features
- Three-pole inline design for cable joining and termination
- Screwless clamping system for faster installation
- Easy-release connection for maintenance and rework
- Supports solid-core and stranded conductors
- Rated to 450 V and 32 A
- Compact dimensions for use in junction boxes and general wiring
- Supplied as six individual connector blocks
Professional Installation Requirements
- For mains-voltage or fixed wiring applications, installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements.
Applications
- General electrical wiring
- Cable joining and termination
- Lighting and power-circuit connections
- Junction boxes and enclosures
- Control-panel and equipment wiring
- Residential, commercial and light-industrial wiring
Standards & Compliance
- AS/NZS IEC 60947.7.1:2015 is the relevant Australian/New Zealand standard for terminal blocks with screw-type or screwless clamping units; the manufacturer lists IEC standard approval, so product-specific Australian certification should be confirmed before use.
Environmental Benefits
- Reusable release mechanism can reduce wiring waste during maintenance or circuit changes
- Compact construction reduces material use and packaging volume compared with larger terminal assemblies
- Durable terminal construction can extend service life and reduce replacement waste
Warranty Information
Covered by Major Tech’s standard product warranty from the date of purchase or delivery, whichever is later, subject to the manufacturer’s warranty conditions. No specific extended warranty period is published for this VETi 1 terminal-block product.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock.
