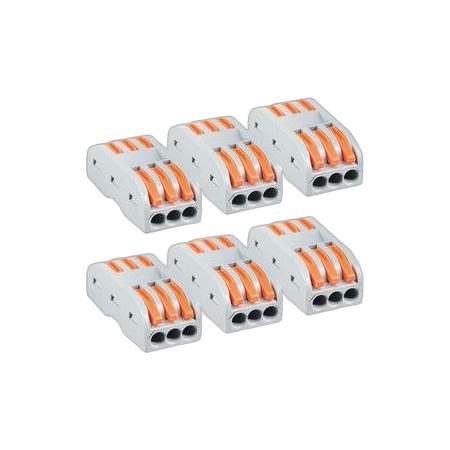

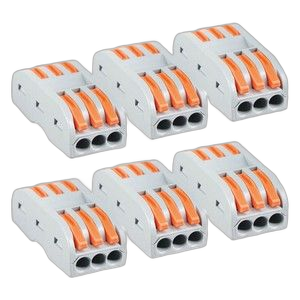

Terminal Block Inline 3 Pole Splicing 30 Pack MajorTech
MajorTech terminal block features an inline 3 pole splicing design and 30 pack. Ideal for cable splicing and joining in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3-Pole Interjoining Connector Blocks, Inline Cable Splice Connectors, PCT-223B Terminal Blocks
Technical Specifications
- Part Number: PCT-223B
- Application: Inline/interjoining cable splicing
- Number of Poles: 3
- Rated Current: 32 A
- Rated Voltage: 450 V
- Voltage Resistance: 4 kV
- Compatible Stranded Wire: 0.4–2.5 mm²
- Compatible Solid-Core Wire: 0.5–4 mm²
- Strip Length: 11–12 mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless clamping
- Pack Quantity: 30 pieces
- Colour: Grey
- Standard Approval: IEC standard approval stated by the manufacturer; specific designation not published
- Dimensions (H x L x W): 14.3mm x 39.3mm x 18.2mm
- Weight: 0.32 kg
Key Features
- Three-pole inline design for joining conductors
- Screwless clamping connection for quick installation
- Easy-release design allows wiring changes or removal
- Rated up to 450 V and 32 A
- Accepts stranded conductors from 0.4–2.5 mm²
- Accepts solid-core conductors from 0.5–4 mm²
- Supplied in a convenient 30-piece bottle pack
Professional Installation Requirements
- For fixed or mains-voltage wiring in Australia, installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and the connector's published ratings. Isolate the circuit before installation and verify conductor compatibility and secure clamping.
Applications
- Joining and splicing electrical cables
- General building and maintenance wiring
- Lighting and power circuit repairs
- HVAC, control and appliance wiring where the conductor size and circuit rating are suitable
- Electrical cabinet and equipment wiring
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules – applicable installation requirements for cable connections and joining devices
- AS/NZS IEC 60947.7.1:2015 – applicable Australian/New Zealand standard for terminal blocks; product-specific certification should be confirmed before use
- Manufacturer states IEC standard approval, but does not publish a specific IEC designation in the available product literature
Environmental Benefits
- Supports repairable wiring installations, potentially reducing replacement of complete cable runs
- Reusable easy-release design can reduce waste during wiring modifications
- Long service life of a correctly installed electrical connection can reduce premature component replacement
Warranty Information
Major Tech Australia’s standard product warranty is 6 months from the date of purchase or delivery, whichever is later, subject to the published exclusions and proof-of-purchase requirements. ([major-tech.com](https://www.major-tech.com/shipping-returns?utm_source=openai))
Available Now
Available through Major Tech and authorised Australian electrical distributors, subject to distributor stock levels.
