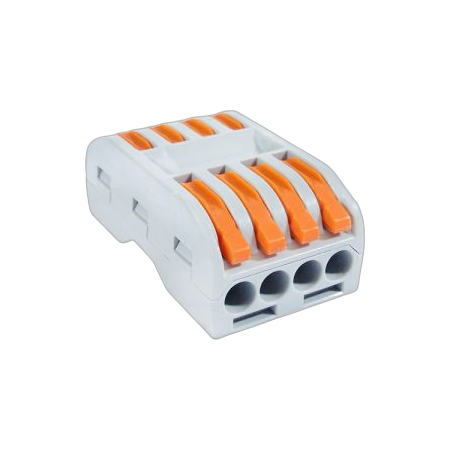

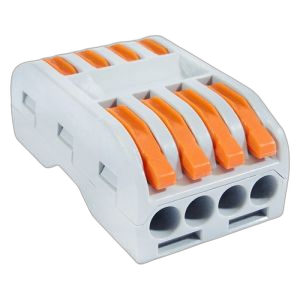

Terminal Block Inline 4 Pole 6 Pack MajorTech
MajorTech terminal block features an inline 4 pole design and 6 pack. Ideal for cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETI PCT-224P6 Interjoining Connector Block, 4-Pole Inline Connector, Screwless Cable Connector
Technical Specifications
- Product Type: Inline interjoining connector block
- Pole Configuration: 4 pole
- Pack Quantity: 6 pieces
- Rated Voltage: 450 V
- Rated Current: 32 A
- Applicable Standard: IEC standard
- Voltage Resistance: 4 kV
- Compatible Wire Range: Stranded 0.4–2.5 mm²; solid core 0.5–4 mm²
- Strip Length: 11–12 mm
- Operating Temperature: -40°C to +105°C
- Connection Method: Screwless clip connection
- Brand Range: VETI 1
- Dimensions (H x L x W): 14.3mm x 39.3mm x 23.1mm
- Weight: 0.1 kg
Key Features
- Four-pole inline design for cable joining and termination
- Six connector blocks supplied per pack
- Screwless clip mechanism for faster installation
- Allows quick release and reconnection of conductors
- Suitable for stranded and solid-core conductors within the specified range
- Compact form factor for general wiring applications
- Rated to 450 V and 32 A by the manufacturer
Professional Installation Requirements
- Connection to mains or fixed wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's conductor, stripping and current-rating requirements.
Applications
- General electrical wiring
- Cable joining and termination
- Lighting and switch wiring
- Junction-box and wall-box wiring
- Electrical maintenance and repair work
Standards & Compliance
- AS/NZS 3000:2018 – applicable to the selection, installation and use of terminal connections in Australian and New Zealand electrical installations; product-specific AS/NZS certification was not stated by the manufacturer.
Environmental Benefits
- Compact screwless design can reduce installation material use compared with separate screw terminals and insulating accessories
- Durable reusable connection mechanism may reduce replacement and electrical-component waste
- Copper conductor and polymer housing are potentially recyclable through appropriate material-recovery facilities
Warranty Information
Major Tech's published policy lists a 5-year warranty for the VETI 1 product range, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised electrical distributors; confirm current stock before ordering.
