Trade Discount 25%

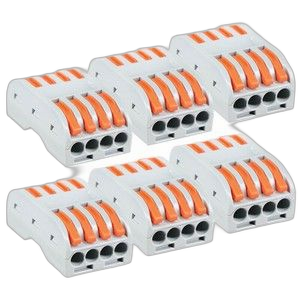

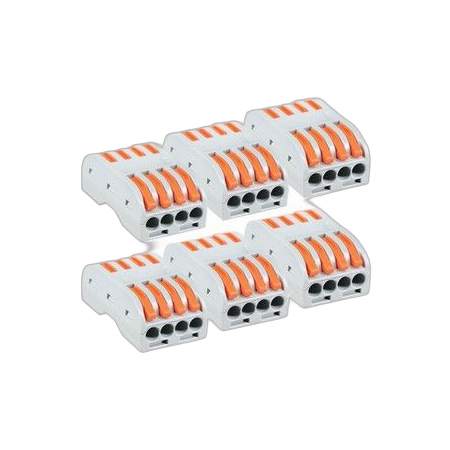

Terminal Block Inline 4 Pole Splicing 25 Pack MajorTech
MajorTech terminal block features an inline 4 pole splicing design and 25 pack. Ideal for cable splicing and joining in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PCT-224B, 4-Pole Terminal Block, Inline Connector Block, Screwless Cable Joiner
Technical Specifications
- Product Type: Inline/interjoining connector block
- Pole Configuration: 4 pole
- Pack Quantity: 25 pieces
- Rated Current: 32A
- Rated Voltage: 450V
- Voltage Resistance: 4kV
- Compatible Stranded Conductors: 0.4-2.5mm²
- Compatible Solid-Core Conductors: 0.5-4mm²
- Strip Length: 11-12mm
- Ambient Temperature Range: -40°C to +105°C
- Connection Type: Screwless clamping
- Standard: IEC standard approved
- Dimensions (H x L x W): 14.3mm x 39.3mm x 23.1mm
- Weight: 0.22 kg
Key Features
- Four-pole design for inline cable splicing and joining
- Screwless clamping system for fast installation
- Easy-release connection design
- Suitable for stranded and solid-core conductors within the specified size ranges
- Compact format for use in confined wiring spaces
- Supplied as a 25-piece bottle pack
Professional Installation Requirements
- Electrical installation should be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Isolate the circuit before installation and use only within the specified conductor, voltage and current ratings.
Applications
- Inline cable splicing
- Joining conductors in general wiring
- Residential electrical wiring
- Commercial electrical installations
- Electrical maintenance and repair work
- Compact wiring connections inside enclosures and junction areas
Standards & Compliance
- AS/NZS 3000:2018 - applicable to the selection, installation and safe use of wiring accessories in Australian and New Zealand electrical installations; this is not a claim of product certification to AS/NZS 3000.
- AS/NZS IEC 60947.7.1:2015 - relevant terminal-block standard for connecting copper conductors; verify product certification requirements for the intended installation.
Environmental Benefits
- Screwless, easy-release design can support efficient repair and reconfiguration, potentially reducing disposal of otherwise serviceable wiring components.
- Compact construction reduces material use and packaging volume compared with larger multi-part connection arrangements.
- Long service life under the specified operating temperature and electrical ratings can help reduce replacement waste.
Warranty Information
Major Tech standard product warranty: 6 months from the date of purchase or delivery, whichever is later, subject to the manufacturer's warranty conditions and exclusions.
Available Now
Available through Major Tech and authorised Australian electrical distributors, subject to distributor stock.
