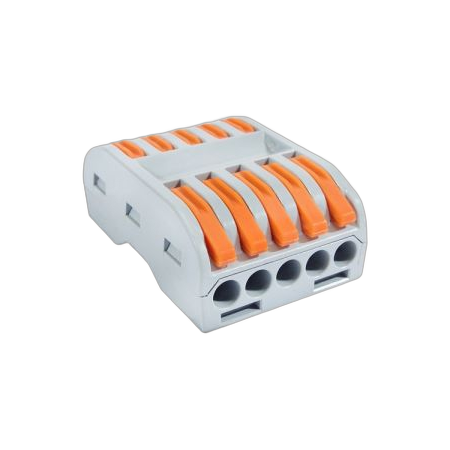

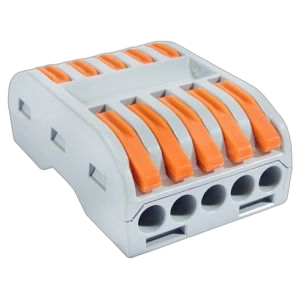

Terminal Block Inline 5 Pole Pack of 6 MajorTech
MajorTech terminal block features an inline 5 pole design and pack of 6. Ideal for cable joining and termination in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech PCT-225P6, 5-Pole Interjoining Connector Block, Inline Cable Connector
Technical Specifications
- Model: PCT-225P6
- Pack Quantity: 6 terminal blocks
- Pole Configuration: 5 pole
- Connection Type: Screwless spring-clamp connection
- Rated Voltage: 450 V
- Rated Current: 32 A
- Voltage Resistance: 4 kV
- Compatible Stranded Conductor: 0.4–2.5 mm²
- Compatible Solid-Core Conductor: 0.5–4 mm²
- Wire Strip Length: 11–12 mm
- Operating Temperature: -40°C to +105°C
- Manufacturer Stated Standard: IEC
- Dimensions (H x L x W): 14.3mm x 39.3mm x 28.1mm
- Weight: 0.1 kg
Key Features
- Five-pole inline design for joining multiple conductors
- Packaged as six individual terminal blocks
- Screwless spring-clamp connection for quick installation
- Suitable for stranded and solid-core conductors
- Compact design for general wiring and cable termination
- Orange operating levers allow conductor insertion and release
Professional Installation Requirements
- For fixed wiring or mains-voltage applications, installation should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the applicable local electrical regulations.
Applications
- General electrical wiring
- Cable joining and termination
- Lighting and control wiring
- Small electrical connection enclosures
- HVAC, appliance and equipment wiring where the conductor size and ratings are suitable
Standards & Compliance
- AS/NZS IEC 60947.7.1:2015 is the relevant Australian/New Zealand standard for terminal blocks for copper conductors; the manufacturer datasheet states IEC standard but does not specify an AS/NZS certification. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-iec-60947-7-1-2015-111070_saig_as_as_232359/))
- Installation and selection should comply with AS/NZS 3000 Wiring Rules.
Environmental Benefits
- Reusable screwless connection design can reduce replacement of conventional screw-type connector blocks
- Compact construction reduces material use and packaging volume compared with larger traditional terminal arrangements
- Long service life can help reduce replacement waste when operated within the specified electrical and temperature ratings
Warranty Information
Major Tech’s standard product warranty is six months from purchase or delivery, whichever is later, subject to the stated exclusions and proof-of-purchase requirements. ([major-tech.com](https://www.major-tech.com/shipping-returns))
Available Now
Available through Major Tech and authorised Australian electrical distributors.
