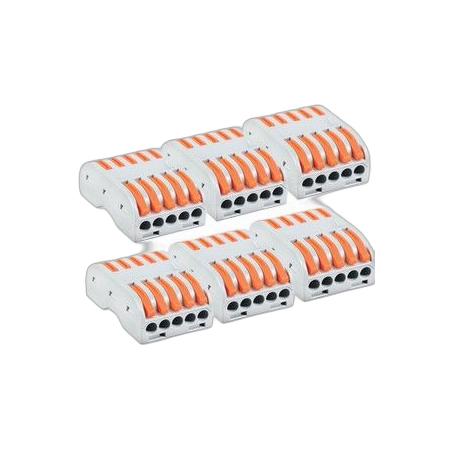

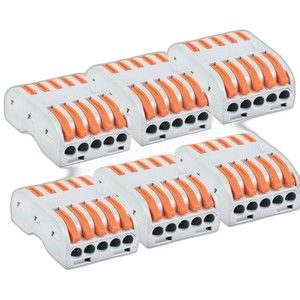

Terminal Block Inline 5 Pole Splicing 20 Pack MajorTech
MajorTech terminal block features an inline 5 pole splicing design and 20 pack. Ideal for cable splicing and joining in general wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MajorTech PCT-225B, 5-Pole Interjoining Connector Block, Inline Cable Splicing Connector, Screwless Terminal Block
Technical Specifications
- Application: Inline and interjoining cable connections
- Number of Poles: 5
- Rated Current: 32A
- Rated Voltage: 450V
- Voltage Resistance: 4kV
- Compatible Stranded Conductor: 0.4–2.5mm²
- Compatible Solid-Core Conductor: 0.5–4mm²
- Wire Strip Length: 11–12mm
- Operating Temperature: -40°C to +105°C
- Connection Type: Screwless clamp connection
- Standard Approval: IEC standard approved
- Pack Quantity: 20 connector blocks
- Dimensions (H x L x W): 14.3mm x 39.3mm x 28.1mm
- Weight: 0.33 kg
Key Features
- Five-pole inline design for joining multiple conductors
- Screwless clamping mechanism for quick installation and release
- Suitable for stranded conductors from 0.4–2.5mm²
- Suitable for solid-core conductors from 0.5–4mm²
- 450V rated voltage and 32A rated current
- 4kV voltage resistance
- Compact form factor for confined wiring spaces
- Supplied as a 20-piece pack
Professional Installation Requirements
- Installation in fixed Australian electrical wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations.
Applications
- General electrical wiring
- Inline cable joining and splicing
- Residential wiring installations
- Commercial and light-industrial wiring
- Lighting and equipment connection work
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations – applicable to the selection, installation and use of wiring connectors in Australian electrical installations; the manufacturer separately identifies the product as IEC standard approved.
Environmental Benefits
- Reusable screwless connection design can reduce replacement waste compared with single-use joining methods.
- Compact construction reduces material use and packaging volume compared with larger terminal assemblies.
- Durable operating temperature range may support longer service life and reduce replacement frequency.
Warranty Information
Major Tech’s Australian warranty policy lists VETi 3 products with a 15-year warranty, subject to the manufacturer’s warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
