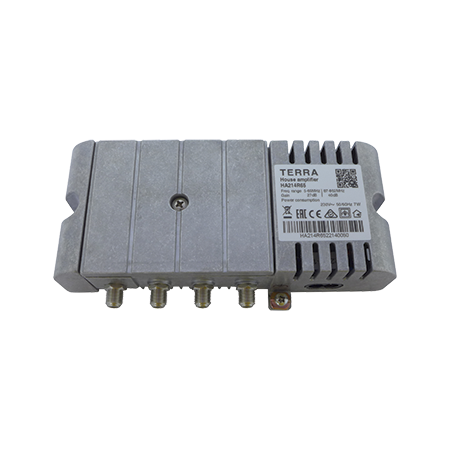

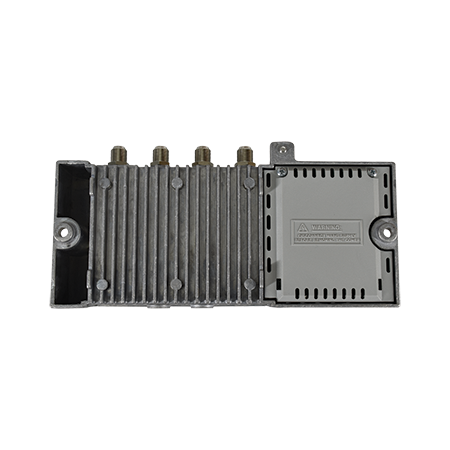

TERRA Amplifier 40dB Forward Gain | 87-862MHz | 65MHz Return Path by Matchmaster
TERRA amplifier with 40dB forward gain and 87-862MHz frequency range—ideal for enhancing signal strength in homes and offices. Built for reliable broadcast reception, with a 65MHz return path for upstream signals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TERRA Amplifier 40dB Forward Gain 87-862MHz with 65MHz Return Path
Brand: Matchmaster
SKU: 14MM-HA214R65
Alternatively Known As: TERRA HA214R65 Amplifier, 40dB Distribution Amplifier, Return Path Amplifier 65MHz, Cable TV Signal Amplifier
Technical Specifications
- Forward path frequency range: 87-862 MHz
- Forward path gain: 40 dB with 18 dB gain adjustment
- Slope adjustment: 18 dB
- Interstage attenuator settings: -10/-5/0 dB
- Interstage equalizer settings: -10/-5/0 dB
- Flatness: ±1 dB
- Input and output return loss: ≥ 14 dB at 40 MHz; -1.5 dB/oct., minimum 10 dB
- Output level CTB, CSO (EN60728-3): 109 dBμV
- Noise figure: 6 dB
- Return path frequency range: 5-65 MHz
- Return path gain: switchable 27/-5 dB with 18 dB gain adjustment
- Return path input attenuator: -10/0 dB
- Return path output equalizer: -6/-3/0 dB
- Return path flatness: ±1 dB
- Return loss: > 14 dB
- Return path noise figure: 7 dB (active, 0 dB input attenuator)
- Power consumption: 7 W at 230 V~ 50/60 Hz
- Operating temperature range: -20° to +50°C
- Dimensions (H x L x W): 47mm x 91mm x 185mm
- Weight: 0.7 kg
Key Features
- 40dB forward gain with 87-862MHz downstream frequency range
- Built-in 65MHz return path amplifier with switchable 27dB or -5dB gain
- 18dB adjustable gain and slope for precise signal control
- Interstage discrete attenuator and equaliser for optimum signal quality
- Output level CTB, CSO compliant with EN60728-3 standards
- Operating temperature range from -20°C to +50°C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Cable TV distribution systems
- Satellite TV distribution
- Broadband signal amplification
- Residential and commercial TV signal distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 7W reduces energy usage
- Durable design extends product lifespan, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster TERRA HA214R65 Distribution Amplifier is available now for immediate purchase. Ideal for cable and satellite TV distribution systems requiring reliable signal amplification and return path functionality.
